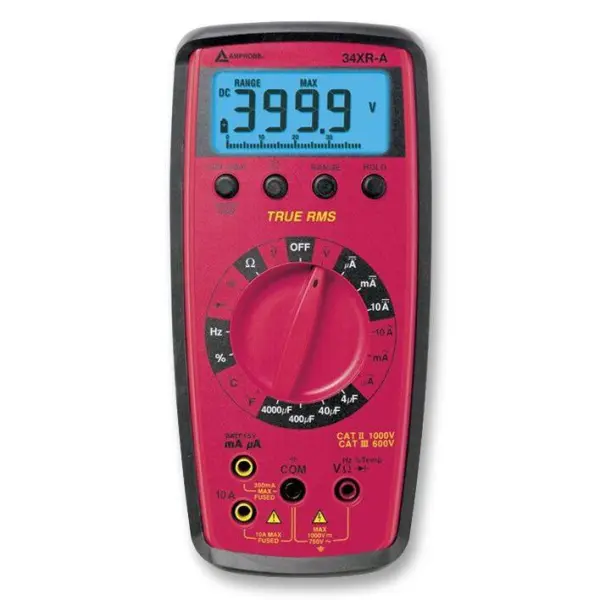

Amprobe 34XR-A Digital Multimeter with Temperature, 1000V

The Amprobe 34XR-A Digital Multimeter is a professional, true RMS digital multimeter designed to meet the demanding needs of contractors, field service technicians, and maintenance professionals. It combines robust functionality with practical features for accurate and reliable measurements across a wide range of electrical and temperature applications.

At its core is a true RMS measurement capability, ensuring accurate readings even on non-linear loads and distorted waveforms commonly found in modern electrical systems. The unit features a clear 3-3/4 digit (3999 count) LCD display complemented by a 41-segment analogue bar graph, providing both precise numerical data and visual trend indication. The display also includes a convenient backlight for use in low-light conditions.

Key Features & Functionality

• Comprehensive Measurements: Capable of measuring AC/DC voltage (up to 1000V DC / 750V AC), AC/DC current (up to 10A), resistance (up to 40MΩ), capacitance, frequency, and temperature via the included type-K thermocouple.
• Advanced Functions: Includes Min/Max recording to capture fluctuations, data hold to freeze readings, and a range lock feature. An overrange indication alerts the user when a measurement exceeds the selected range.
• User Safety & Convenience: An input warning tone sounds if test leads are placed in the incorrect jack, helping to prevent accidents. A continuity beeper provides audible feedback for quick circuit checks. The unit also has auto power-off to conserve battery life.
• Durable & Serviceable Design: Built with a separate access door for easy battery and fuse replacement without needing to open the main case. The supplied Magne-Grip™ holder with a hanging strap allows for hands-free operation on metal surfaces.

Supplied with a protective carrying case, test leads, a type-K thermocouple, and a user manual, the Amprobe 34XR-A is a complete, portable
