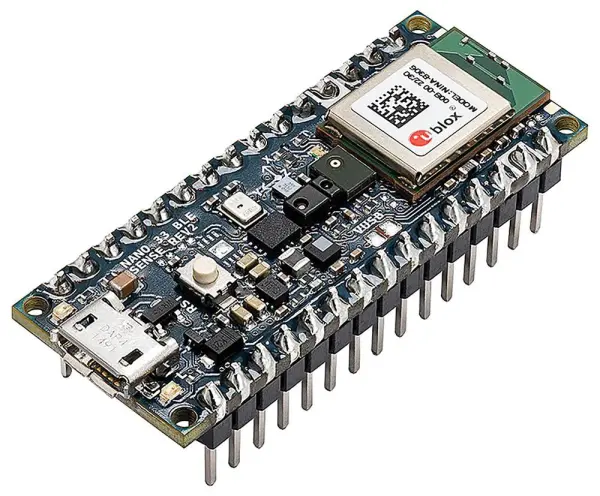

Arduino Nano 33 BLE Sense Rev2 AI Development Board With Headers

The Arduino Nano 33 BLE Sense Rev2 is a miniature-sized AI development board equipped with pre-soldered headers for immediate prototyping. Powered by the NINA B306 module, it features a Nordic nRF52840 chip and a Cortex-M4F processor, delivering robust performance for complex applications.

This board integrates a 9-axis IMU provided jointly by the BMI270 and BMM150 sensors, making it ideal for advanced motion and orientation tracking. With 1MB of flash memory and 256KB of RAM, it offers ample space for code and data handling. It operates on a supply voltage of 3.3V and includes versatile interfaces such as GPIO, SPI, I2C, USART, and PWM, alongside on-board ADC and DAC converters.

Design and Connectivity

Designed for flexibility, this module can be mounted as a DIP component using the included pin headers, or soldered directly as an SMT component via its castellated pads. A Micro USB socket ensures straightforward programming and power connection.

• Miniature module design with factory-soldered connectors
• 9-axis IMU (BMI270 and BMM150)
• 1MB Flash memory and 256KB RAM
• Supply voltage: 3.3V
• Interfaces: GPIO, SPI, I2C, USART, PWM
• On-board ADC and DAC converters
• Micro USB socket
• Mounting options: DIP or SMT via castellated pads

Whether you are developing wearable tech, IoT devices, or edge AI solutions, the Arduino Nano 33 BLE Sense Rev2 provides a compact and powerful foundation.
