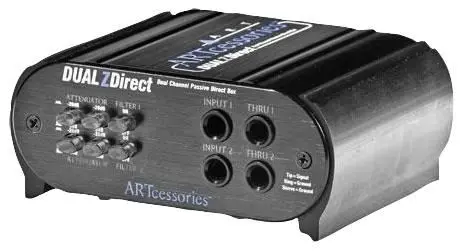

ART DUALZDirect Dual Passive DI Box

The ART DUALZDirect provides two independent, high-quality, totally passive interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs through high performance audio isolation transformers. Each of the high impedance single-ended ¼" inputs is converted by a transformer into an isolated, balanced, low impedance signal output.

The DUALZDirect’s audio transformers have an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALZDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

Features

• Fully passive, high performance transformer design
• Converts 50kΩ inputs into 600Ω balanced outputs
• Switchable low pass filter
• Switchable phase invert
• Switchable ground lift
• Rugged extruded aluminium case

Connectivity & Specifications

Equipped with 2x 6.35mm (¼") TRS unbalanced inputs, 2x 6.35mm (¼") TRS thru connections, and 2x XLR male outputs. It offers a frequency response of 10Hz-50kHz (±0.5dB), channel separation of greater than 80dB (typical), and switchable input attenuation (0, -20, -40dB). With a typical THD of 0.01% @ 1kHz, +18dBu, signal integrity is maintained. The unit measures 117 x 47 x 99mm (WxHxD) and weighs 400g, while shipping dimensions are 33 x 43 x 15mm with a weight of 500g.
