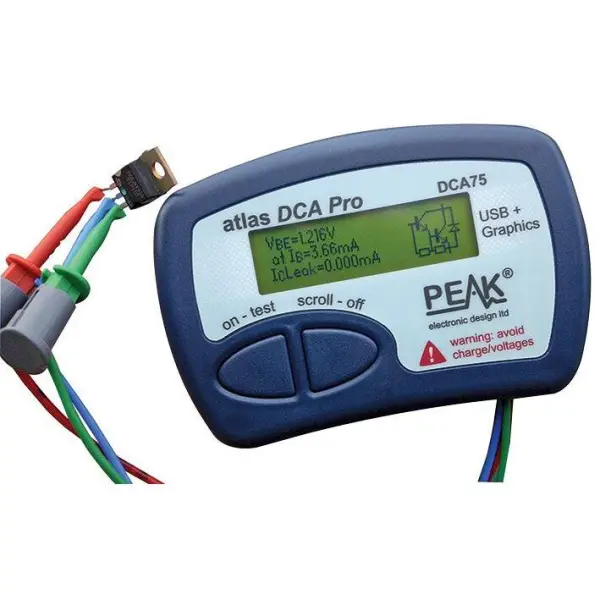

Atlas DCA75 Pro Advanced Semiconductor Component Analyser

The Atlas DCA75 Pro Advanced Semiconductor Component Analyser is a sophisticated and user-friendly diagnostic tool designed for electronics enthusiasts, technicians, and engineers. It combines ease-of-use with powerful features to automatically identify a huge range of semiconductor devices, determine pinouts, and measure detailed electrical parameters, all without requiring the component to be connected in a specific orientation.

Featuring a clear graphics display, a USB port for PC connectivity, and an enhanced component identification library, this analyser streamlines the testing and characterisation process. It can be used as a convenient stand-alone unit or connected to a computer for deeper analysis and curve tracing functionality. The included PC software allows for further detailed component examination and data logging.

Key Features

• Automatic Identification: The unit can automatically determine the component type, such as transistors (BJTs, Darlingtons, digital), JFETs, IGBTs, voltage regulators, Zener diodes, standard diodes, and more.
• Automatic Pinout Detection: Components can be connected in any orientation; the analyser will correctly identify the pin configuration (Base, Collector, Emitter, Gate, Drain, Source, etc.).
• Comprehensive Component Support: The extensive library supports a wide array of devices including Silicon Germanium transistors, enhancement and depletion mode MOSFETs, SiC JFETs, diode networks, bi-colour LEDs (2 and 3 lead types), Triacs, and Thyristors.
• Detailed Parameter Measurement: It provides key measurements like Zener diode voltage (up to 9V at 5mA), hFE (DC current gain), threshold voltages, and more.
• Curve Tracing: When connected to a PC via the supplied USB cable, the software enables advanced curve tracing for detailed graphical analysis of component characteristics.
• Premium Probes: The kit is completed with a **
