BEHA-AMPROBE 700V 3 Phase Rotation Tester Kit

The BEHA-AMPROBE 700V 3 Phase Rotation Tester Kit is a simple and reliable tool designed to check for proper phase sequence in 3-phase cables and receptacles. Durably constructed with a rubber outer casing, this tester is CAT IV 600V rated, making it an essential instrument for phase rotation testing in commercial and industrial environments on electrical systems up to 700V.

This tester provides a phase sequence test to validate correct connections and efficiently identifies faulty 3-phase wiring with de-energised phases or incorrectly wired receptacles. It features 3-phase wire sequence indication and an error display for clear readings. Built to withstand demanding work environments, the device is drop-proof to 1 metre.

Compliance

The meter complies with CE IEC/EN 61557-1/-7, IEC/EN 61010-1 3rd edition to CAT IV 600V (pollution degree 2), IEC/EN 61010-2-030, IEC/EN 61010-031 for test leads, and EMC IEC/EN 61326-1.

Warnings

Do not touch voltages greater than 30VAC RMS, 42VAC peak, or 60VDC, as these may cause electrical shock hazards. Do not use the tester with any parts removed.

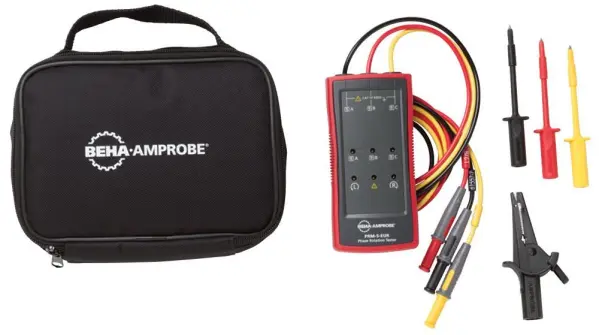

Kit Contents

• Phase rotation tester
• Non-detachable test leads (black, red, yellow)
• 3 test probes (black, red, yellow)
• Alligator clip (black)
• Carrying case
• User guide
