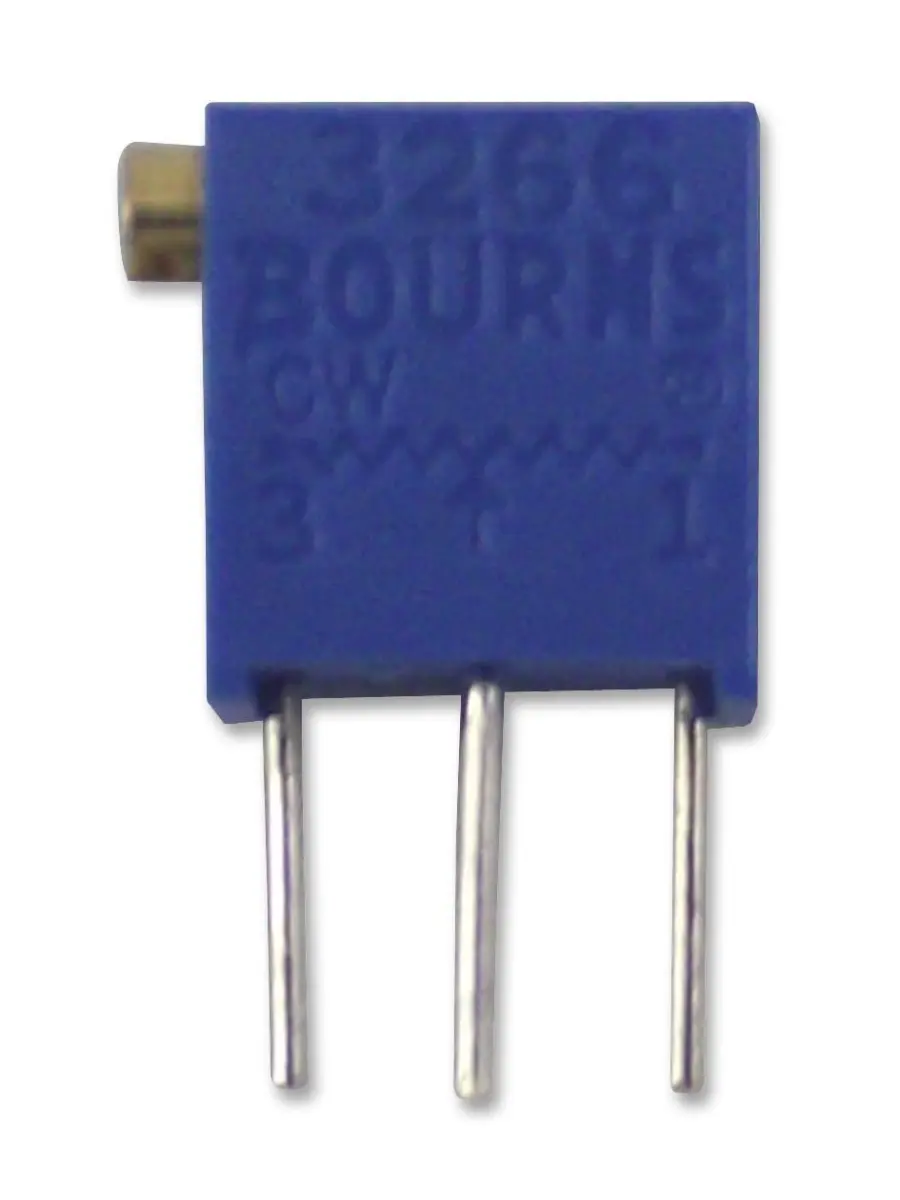

Bourns 3266 Trimmer Potentiometer, 2kΩ, 12 Turn, Through Hole, Side Adjust
Precision 2kΩ trimmer potentiometer, 12-turn, cermet, through hole, IP65 sealed. Suitable for circuit adjustments.
The Bourns Trimpot 3266 series are cermet, through hole trimming potentiometers. These multi-turn potentiometers perform a variety of circuit adjustments in all types of electronic equipment. Typical applications include measuring linear distance, angle, or rotation in production equipment.
This particular model features a track resistance of 2kΩ, a power rating of 0.25W, and a ±10% tolerance. It offers 12 turns and a rotational life of 200 cycles, ensuring precise and reliable adjustment. The potentiometer is sealed to an IP65 rating, protecting it from dust and water ingress.
Key Specifications
- Resistance: 2kΩ (±10% tolerance)
- Power Rating: 0.25W (250mW)
- Number of Turns: 12
- Adjustment Type: Side adjust with lead screw
- Element Material: Cermet
- Mounting: Through hole
- Sealing: IP65 rated
- Operating Temperature Range: -55°C to +125°C
- Temperature Coefficient: ±100ppm/°C
- Rotational Life: 200 cycles
- Size: 1/4 inch square
The standoffs allow thorough PC board cleaning after soldering. This trimmer is suitable for a wide range of electronic equipment requiring precise circuit adjustments.
