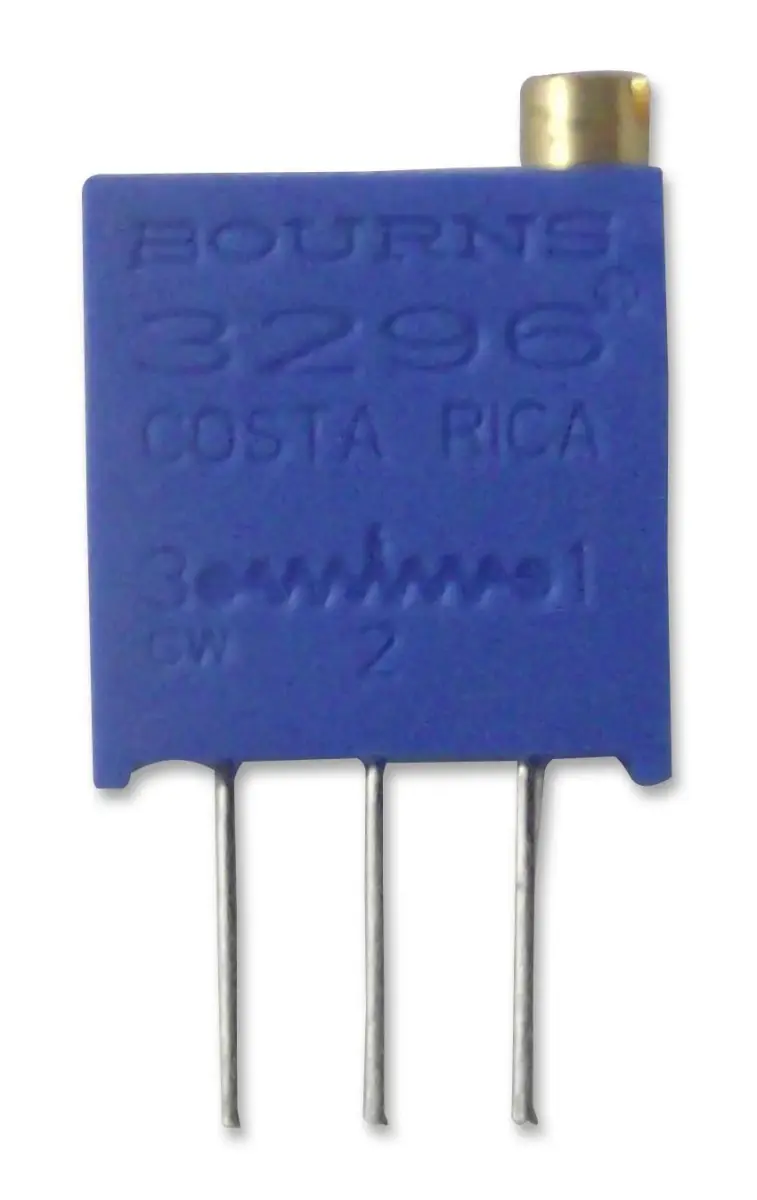

Bourns 3296 Series Multi-Turn Potentiometer, Cermet, 10KΩ, 10%

The Bourns 3296 Series Multi-Turn Potentiometer is a high-precision, industrial-grade trimmer potentiometer, widely recognised for its reliability and precise adjustability. Designed for critical applications, this through-hole mounted component offers exceptional stability and a long operational life, making it an ideal choice for calibration and fine-tuning in electronic circuits.

Featuring a robust cermet (ceramic-metal) resistive element, this potentiometer provides excellent performance with a track resistance of 10 kilo-ohms (kΩ) and a tolerance of ±10%. Its multi-turn design, offering 25 full rotations, allows for extremely fine and accurate adjustment of resistance, which is essential for applications demanding high precision. The chevron seal design enhances environmental protection, making it suitable for demanding conditions.

Built to withstand industrial environments, it operates reliably across a wide temperature range from -55°C to +150°C. With a power rating of 500 milliwatts (0.5W) and a temperature coefficient of ±100ppm/°C, it ensures stable performance with minimal drift. The component is housed in a compact, 3/8-inch square SIP (Single In-line Package), providing a space-saving solution for printed circuit board (PCB) mounting.

Key Applications & Features

This trimmer potentiometer is engineered for use in production equipment where precise measurement and control of linear distance, angle, or rotation are required. Its sealed, industrial construction and multi-turn adjustment make it perfect for setting bias points, calibrating instrumentation, and fine-tuning signal levels in a vast array of electronic devices and control systems. The top-adjustment type allows for easy access during assembly and servicing.

Specifications

• Series: 3296W
• Adjustment Type: Top Adjust, Multi-Turn (25 Turns)
• Element Material: Cermet
• **Track/Terms/T
