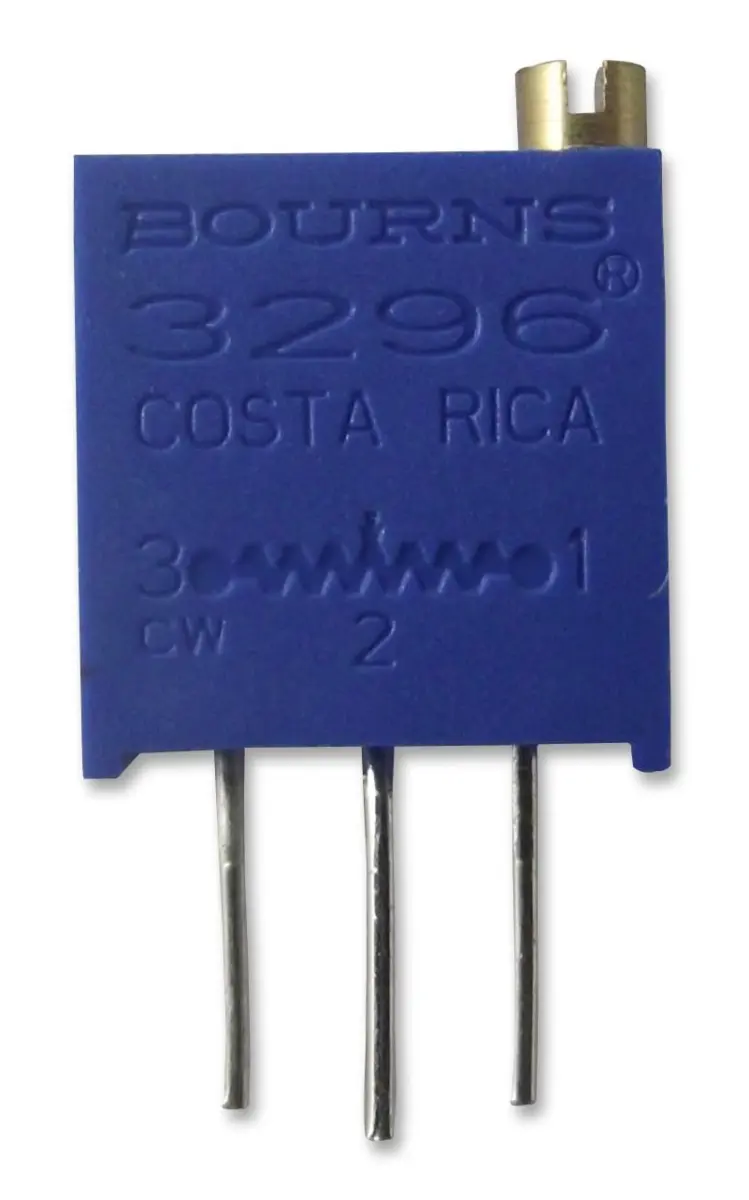

Bourns Trimpot 3296 Series 25 Turn 2k Ohm Cermet Trimmer
Bourns 3296 series 2kΩ cermet trimmer, 25 turns, top adjust, IP65 rated, through hole. Includes ±10% tolerance.
The Bourns Trimpot 3296 series is a range of cermet, through-hole trimming potentiometers designed for precise multi-turn circuit adjustments in a wide variety of electronic equipment. These trimmers are ideal for applications requiring accurate and stable settings, such as measuring linear distance, angle, or rotation in production equipment.
Featuring a 3/8 inch square design, this trimmer offers both side and top adjustment options via a lead screw, providing flexibility for different mounting and calibration needs. The component is sealed to an IP65 rating, offering reliable protection against dust and water ingress, ensuring dependable performance in harsh environments.
This particular model provides a resistance value of 2kΩ with a ±10% tolerance, and a power rating of 0.5W. It offers 25 turns of adjustment with a rotational life of 200 cycles, allowing for fine-tuning and repeated use. The temperature coefficient is ±100ppm/°C, ensuring stable performance across a wide operating temperature range from -55°C to +125°C.
The trimmer is available in 5 terminal styles and features a chevron seal design for enhanced protection. Its compact footprint and robust construction make it a versatile choice for engineers and manufacturers looking for a reliable trimming solution.
Specifications
- Trimmer Type: Multi-Turn
- Element Material: Cermet
- Adjustment Type: Top Adjust
- Track Resistance: 2kΩ
- Potentiometer Mounting: Through Hole
- No. of Turns: 25 Turns
- Product Range: 3296 Series
- Power Rating: 500mW
- Resistance Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Trimmer Shape / Size: 3/8 Inch Square
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Sealing: IP65 Rated
