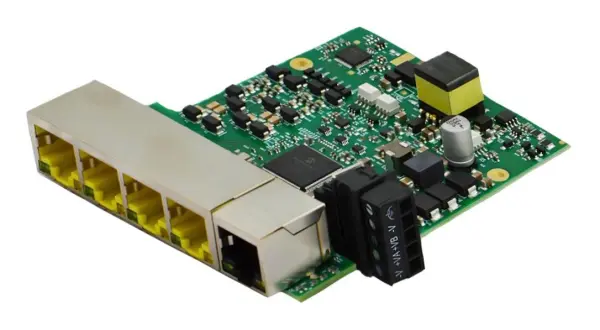

Brainboxes 5-Port Industrial Unmanaged PoE+ Gigabit Ethernet Switch

The Brainboxes 5-Port Industrial Unmanaged PoE+ Gigabit Ethernet Switch is engineered for demanding environments, offering a robust networking solution. By enabling the transmission of electrical power over the same cable that carries data, this industrial PoE switch removes the need for costly electrical installations, streamlining deployment.

Simple to install, the switch fully conforms to IEEE 802.3af/at Ethernet standards for reliable performance and offers the flexibility to deploy powered devices at almost any location. It features 4 PoE+ capable ports and 5 x Gigabit 10/100/1000 BaseT (RJ45) Ethernet ports, ensuring high-speed connectivity.

Key Features

• Fully compliant with IEEE 802.3af/at standards
• Redundant dual power inputs: +44V to +57V DC
• Smart LED indicators for real-time status information and quick visual monitoring
• Industrial temperature range from -40°C to +70°C
• Power consumption (not including PoE): 5.5W max (96mA at +57VDC)
• Compact PCB mount design measuring 40 mm x 30 mm x 25 mm, weighing just 162 grams

This unmanaged switch provides streamlined installation and reliable operation for industrial applications where space and power efficiency are crucial.
