Brainboxes Industrial 5 Port PoE+ Gigabit Ethernet Switch DIN

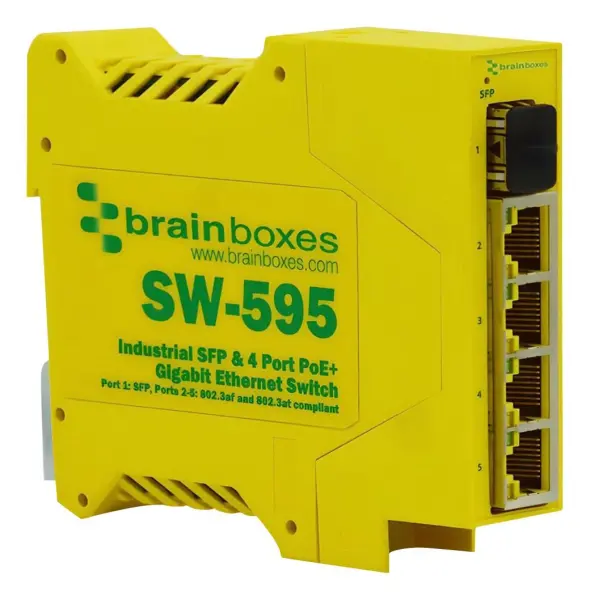

The Brainboxes Industrial 5 Port PoE+ Gigabit Ethernet Switch (model SW-595) is engineered for demanding environments where reliable network connectivity and power delivery are essential. This unmanaged switch combines four Gigabit PoE+ ports with one SFP uplink port, enabling high-speed data transfer and flexible network expansion in a single, streamlined solution.

By transmitting electrical power over the same cable that carries data, this PoE switch eliminates the need for costly electrical installations at each powered device. It fully conforms to IEEE 802.3af/at Ethernet standards, ensuring dependable performance and the flexibility to deploy devices such as IP cameras, wireless access points, and industrial sensors at virtually any location.

Key Features & Benefits

• 4 × Gigabit 10/100/1000 BaseT (RJ45) PoE+ Ports – Deliver up to 30W per port (standard-defined) to compatible devices
• 1 × 1000 Base-X SFP Uplink – Securely transmit lightning-fast data over longer distances using fiber optic modules
• Industrial Temperature Range – Operates reliably from -40°C to +70°C, ideal for harsh conditions
• Redundant Dual Power Inputs – Accepts +44V to +57V DC, ensuring continuous operation even if one supply fails
• Smart LED Indicators – Provide real-time status information for quick visual monitoring of link, PoE, and power status
• Compact Design – Space-saving form factor, perfect for DIN rail installations in control cabinets

This switch is simple to install and requires no configuration, making it a plug-and-play solution for industrial automation, surveillance, and transportation networks. With a power consumption of just 5.3W (excluding PoE), it is energy-efficient and cost-effective to operate.

Specifications

_ Ports: 5 Ports (4 × RJ45 PoE+, 1 × SFP) _ Network Speeds: 10 Mbps, 100 Mbps, 1 Gbps _ Standards: IEEE 802.3af/at (PoE
