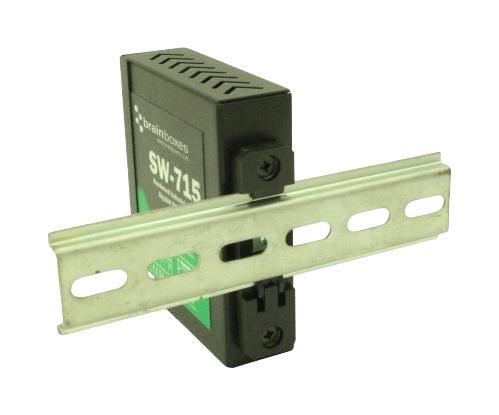

Brainboxes SW-715 Hardened 5-Port DIN Mount Gigabit Ethernet Switch
Hardened 5-port industrial Ethernet switch with DIN rail mounting, redundant power, and extreme temp resilience.
The Brainboxes SW-715 Hardened 5-Port Gigabit Ethernet Switch is a robust and high-performance network solution designed for demanding industrial environments. Featuring a hardened metal enclosure with IP20 rating, this compact switch is built to withstand harsh conditions, from factory floors to marine applications. Its slim profile allows for easy integration into space-constrained installations.
Key Features
- The switch delivers high-speed connectivity with five Gigabit Ethernet ports, ensuring reliable data transfer at speeds of 10Mbps, 100Mbps, or 1Gbps.
- Auto MDI/MDI-X crossover support ensures hassle-free network connections without manual configuration.
- Magnetically isolated ports protect against electrical interference, enhancing signal integrity in noisy environments.
- Dual redundant power input (5V to 30V DC) increases reliability by providing backup power, reducing downtime.
- Extended operating temperature range (-40°C to +80°C) makes it ideal for extreme conditions.
- Integrated DIN rail mounting with ground simplifies installation in industrial settings.
- Plug-and-play operation eliminates the need for configuration software, streamlining deployment.
The switch comes with a removable screw terminal block for easy wiring and includes a comprehensive user guide for quick setup. Please note that due to high demand, lead times may vary and discounts are not applicable.
- Dispatched within 0-2 business days
- Delivery to United States: 3-5 business days*
- Free Shipping Included
- Industrial automation
- Factory floor networking
- Marine environments
- Harsh outdoor settings
- Ports: 5 x Gigabit Ethernet (RJ45)
- Network Speeds: 10Mbps, 100Mbps, 1Gbps
- Enclosure: Hardened metal, IP20-rated
- Operating Temperature: -40°C to +80°C
- Power Input: Dual redundant (5-30V DC)
- Mounting: DIN rail with ground
- Port Isolation: Magnetic
- Auto Crossover: Auto MDI/MDI-X supported
- Included: Switch, user guide
- Weight: 340g
