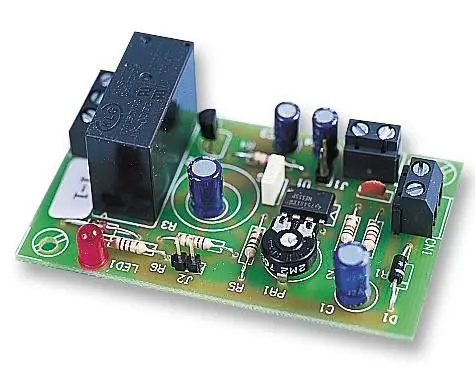

Cebek UK 12V Adjustable Timer Module 30min - 4hr

The Cebek UK 12V Adjustable Timer Module is a reliable electronic timer kit designed to energise a relay upon activation. Once triggered, the relay remains energised until the set time period has fully elapsed. The duration of the energised state is fully adjustable, ranging from 30 minutes to 4 hours, and can be easily configured using the on-board potentiometer for precise control over your timing requirements.

This module incorporates several practical features to ensure safe and straightforward operation. A built-in LED provides a clear visual indication that the timer is actively running. Furthermore, the circuitry includes reverse polarity protection, safeguarding the module against accidental incorrect power connections and enhancing overall durability.

Operating on a 12V supply with a current consumption of just 50mA, this timer module is highly efficient. It is rated for a maximum relay load of 5A, making it suitable for switching moderate electrical loads. The compact dimensions ensure it can be conveniently housed within various project enclosures.

Key Features

• Fully adjustable time period from 30 minutes to 4 hours
• On-board potentiometer for easy adjustment
• LED operation indicator
• Reverse polarity protected circuits

Specifications

• Operating Voltage: 12V
• Current Consumption: 50mA
• Maximum Relay Load: 5A
