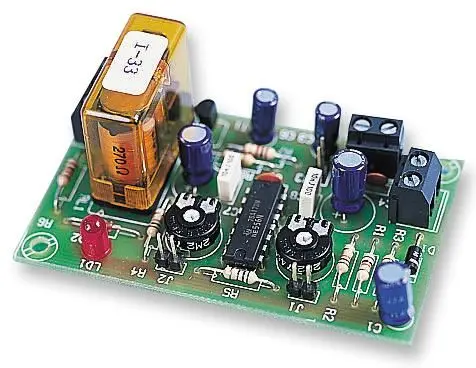

Cebek 12V Delay Timer Kit 2 - 45min

The Cebek 12V Delay Timer Kit is a versatile timer module designed to provide precise time delay management for your electrical projects. When activated, the module waits for a pre-determined time before switching ‘On' its integrated relay. Once activated, the relay will then remain ‘On' for a further pre-determined period, offering dual-stage timing control in a single compact unit.

An integrated LED indicator clearly shows when the timer is in operation, allowing for easy monitoring and troubleshooting during use. Additionally, the circuit features reverse polarity protection, safeguarding the module against accidental power connection errors and enhancing overall durability and reliability.

Key Features

• Pre-determined delay before relay activation
• Pre-determined 'On' duration for the relay
• LED operation indicator
• Reverse polarity protected circuits

With an adjustable time period ranging from 2 to 45 minutes, this timer kit is perfectly suited to a wide variety of automation and timing applications. Its compact dimensions ensure it can be easily integrated into existing enclosures or control panels without requiring excessive space.

Specifications

• Operating Voltage: 12V
• Current Consumption: 50mA
• Maximum Relay Load: 5A
• Time Period: 2 min to 45 min
• Dimensions (WxHxD): 30 x 75 x 43mm
• Weight: 55 grams
