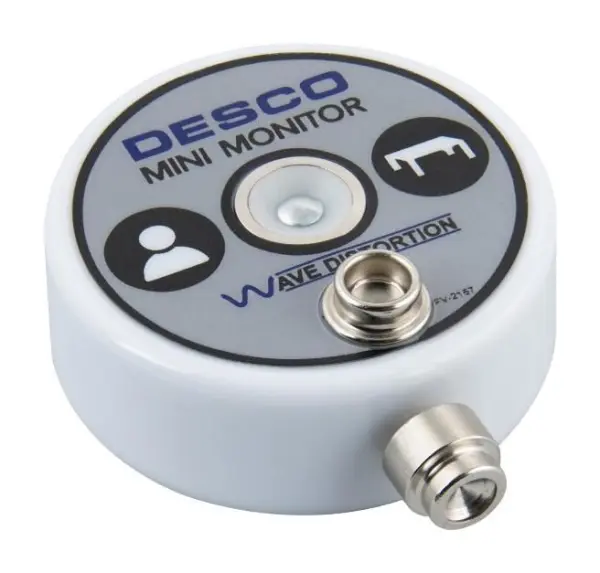

DESCO Workstation Mini Monitor with ParkSnap, 9VDC

Ensure a safe and compliant ESD work environment with the DESCO Workstation Mini Monitor. This single workstation continuous monitor is designed to constantly verify the path-to-ground integrity for one operator and one ESD worksurface, enhancing safety and productivity in sensitive electronics handling areas.

The monitor's illuminated enclosure provides clear, at-a-glance visual status of both the operator and worksurface for quick supervision. Featuring Wave Distortion Technology, it delivers stable continuous monitoring, detecting the presence of 1Mohm resistance in an operator's wrist strap and ensuring proper grounding. Audio and visual alarms activate in less than 50 milliseconds upon operator disconnect or intermittent wrist strap connections, promptly alerting to potential risks.

This compact monitor also checks the worksurface path-to-ground, ensuring it remains below 10 megohms. A Park delay timer and ParkSnap™ mat monitor switch conveniently disables the worksurface monitoring circuit when no ESD worksurface is in use, while an adjustable audible alarm can be set from loud to louder. A threaded worksurface grounding and mounting system grounds the monitor and worksurface without any additional wiring.

Designed with a single-wire impedance approach, it meets ANSI/ESD S20.20 standards in accordance with ESD TR1.0-01-0. The 1.2V operator test voltage reduces the risk of Electrostatic Overstress (EOS) to sensitive components, and the 50ms alarm response time catches failures and intermittencies that less advanced technologies miss. The package includes a 9VDC power adapter with IEC C14 inlet, a banana plug to 10mm snap adapter, and necessary mounting hardware.

Key Features:

* Continuous Monitoring: For 1 operator and 1 ESD worksurface, ensuring path-to-ground integrity.

• Wave Distortion Technology: Stable and reliable monitoring of operator wrist straps,
