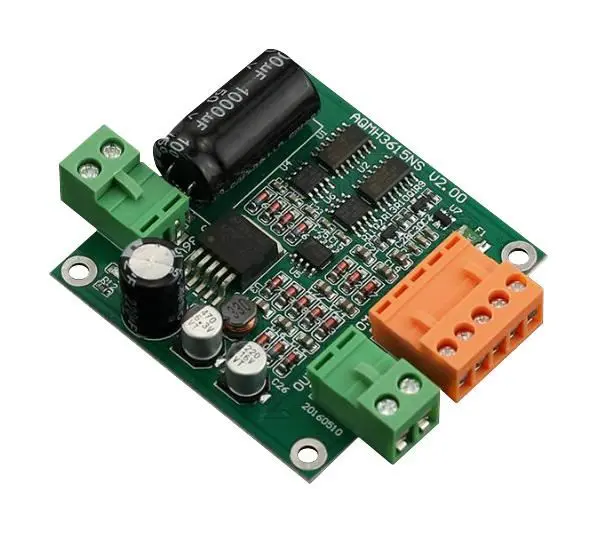

DFRobot 15A Single DC Motor Driver Module

The DFRobot DRI0042 15A Single DC Motor Driver is a compact and powerful solution for driving high-current DC motors in space-constrained projects. With an ultra-small footprint, this driver is designed for applications where room is limited, yet performance cannot be compromised. The driver utilises the advanced LM2575 IC, enabling it to efficiently drive motors up to 36V at a continuous current of 15A.

Safety and reliability are at the forefront of this design. The integrated Under Voltage Lock-Out (UVLO) feature protects your system from potential damage due to low voltage conditions, ensuring stable operation. Additionally, the interface is protected against Electro-Static Discharge (ESD), adding an extra layer of durability for handling and integration.

This driver also provides a convenient 5V output, making it an ideal choice for powering an Arduino (such as the UNO R3) or other low-power devices in your project. The module supports PWM speed control for precise motor speed regulation, and features an M3 mounting hole for easy installation.

Key Specifications:

• Ultra-compact size for space-limited projects
• Voltage supply range: 12VDC to 36VDC
• Voltage supply limit range: 6.5V to 40V
• Maximum continuous operating current: 12A (without heat sink)
• Working temperature range: -25°C to 85°C
• PWM speed control for precise regulation
• ESD-protected interface for enhanced durability
• 5V output for Arduino and other devices
• M3 mounting hole for secure installation

Designed for use with the Arduino UNO v3.0 R3, this driver is a reliable and efficient choice for robotics, automation, and other motor control applications.
