DFRobot PCB Engineering Ruler, 160 x 32mm, Fibreglass
Compact fibreglass PCB engineering ruler (160x32mm) with design references for efficient PCB work.

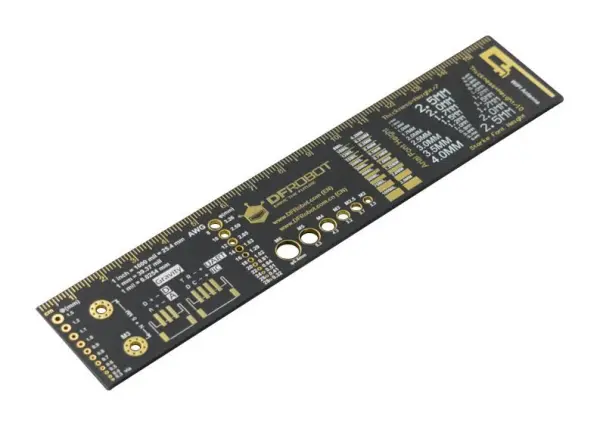

The DFRobot PCB Engineering Ruler is a compact and practical tool designed for electronic engineers. It is only the size of a palm, making it delicate, compact, and easy to carry. This engineering ruler provides quick references for PCB design, helping to improve work efficiency. It is an essential auxiliary tool for DFRobot engineers, and also a great help for ruler drawing and model making thanks to its precise scale and hard glass fibre material.
The ruler includes a variety of design references printed on its surface: wire diameter reference (AWG), via design reference (in mm), screw hole aperture design reference (M2–M6), resistor package sizes, capacitor package sizes, power IC packages, and crystal package sizes. The dimensions are 160 x 32mm.
Key Features:
- Compact, palm-sized design for portability
- Hard glass fibre material for durability and precision
- Includes multiple PCB design references for improved workflow
- Suitable for engineers, hobbyists, and makers
Specifications:
- Dimension (L x W x H): 160 x 32mm (approx.)
- Material: Fibreglass
- Weight: 20 grams
- Height: 6mm
- Width: 50mm
- Depth: 6mm
- Reference standards: Wire diameter (AWG 8–28), Via design (0.3–1.5mm), Screw holes (M2–M6), Resistor packages (0402–2512), Capacitor packages (0402–F60), Power IC packages (SOT343–SOT223), Crystal packages (3213–49SMD)
