DIGILENT BNC Adaptor Board for Analog Discovery 2 USB Oscilloscope

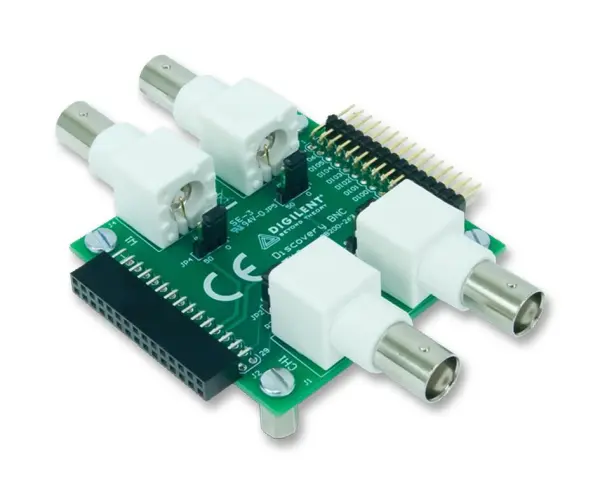

Enhance the connectivity and functionality of your DIGILENT Analog Discovery 2 USB Oscilloscope with this dedicated BNC Adaptor Board. This essential accessory enables the use of standard, professional-grade BNC-terminated test leads and probes, transforming your compact USB oscilloscope into a more versatile and familiar benchtop-style instrument.

The board provides high-quality BNC terminations for both oscilloscope input channels. Behind each BNC input connector, a configurable jumper allows you to select either AC or DC coupling for the oscilloscope channel, giving you precise control over signal measurement for different applications.

It also extends professional connectivity to the Arbitrary Waveform Generator (AWG) channels. Each output channel features a BNC termination with a selectable impedance of either 50 Ohm or 0 Ohm. This critical feature allows you to correctly match the output impedance to standard 50 Ohm test leads or to connect directly to a circuit, ensuring accurate signal generation and integrity.

Key Features & Benefits:

• Standardised Connectivity: Move away from fragile grabber clips and utilise robust, widely available BNC test leads and probes for reliable connections.
• Oscilloscope Channel Flexibility: The selectable AC/DC coupling for each input channel allows for accurate measurement of both AC signals and DC voltage levels.
• Impedance Matching for AWG: The selectable 50 Ohm or 0 Ohm termination on waveform generator outputs prevents signal reflections and ensures your generated signals are accurately delivered to the device under test.
• Compact and Durable Design: The board is designed to be a rugged and permanent accessory for your Analog Discovery 2, with a solid construction that protects the device's native connectors.

This adaptor board is an indispensable tool for anyone using the Analog Discovery 2 in **electr
