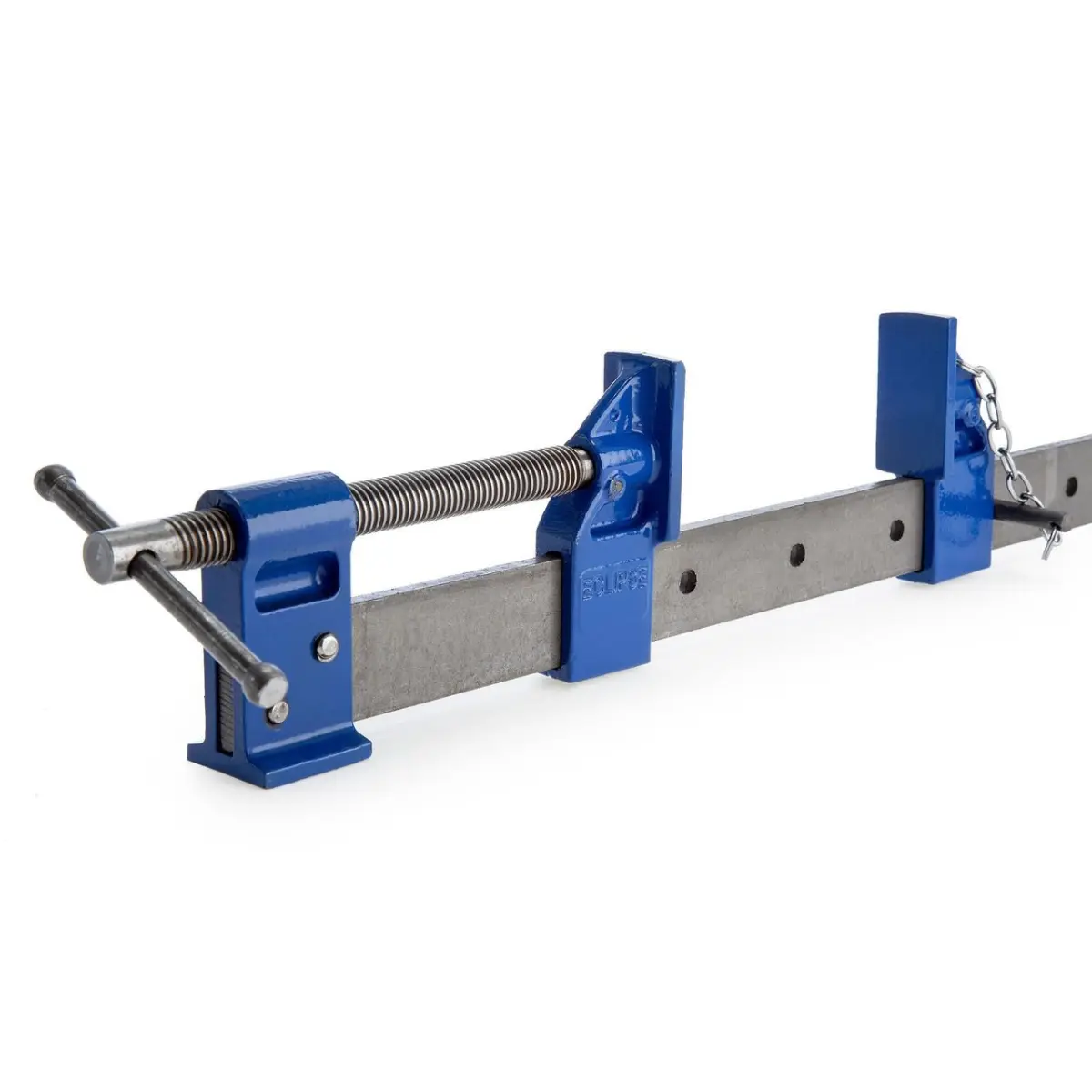

Eclipse ESC48 Twin Thread Sash Clamp, 48in / 1220mm
Eclipse ESC48 Sash Clamp: Heavy-duty 48in/1220mm steel clamp with 500kg force & twin acme thread.
The Eclipse ESC48 Sash Clamp features a twin-start rolled acme thread for smooth and quick pressure application on your workpiece. With a clamping capacity of 48in (1220mm) and a bar length of 54in (1370mm), this sash clamp delivers an average clamping force of 500kg (1100 lbs), making it ideal for demanding woodworking applications.
Constructed with a ductile head and slide, this clamp is guaranteed unbreakable, while the steel bar provides maximum tensile and yield strength. The slightly tapered jaws ensure perfectly parallel clamping, while the fast-action rolled thread enhances efficiency when adjusting pressure.
Key Features:
- Durable & Reliable: The ductile head and slide withstand heavy use without breaking.
- High Clamping Force: Up to 500kg (1100 lbs) of clamping force for secure holds.
- Quick Adjustment: Twin-start rolled acme thread enables smooth and rapid pressure changes.
- Stable Design: Flat-bottomed head and slide allow the clamp to stand independently.
- Secure Slide Locking: A solid steel pin secures the slide in place using pre-drilled location holes.
Whether you're gluing large wooden panels, assembling furniture, or working on cabinetry, the Eclipse ESC48 Sash Clamp provides the strength and reliability needed for professional woodworking.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Dispatched within 0-2 business days
- Delivery to United States: 3-5 business days*
- Free Shipping Included
- Gluing large wood panels
- Furniture assembly
- Cabinet-making
- Woodworking clamping
- Clamping Capacity: 48in / 1220mm
- Bar Length: 54in / 1370mm
- Clamping Force: 500kg / 1100lbs
- Thread Type: Twin-start rolled acme
- Material: Steel bar with ductile head & slide
- Slide Locking: Secured by steel pin
- Special Feature: Tapered jaws for parallel clamping
