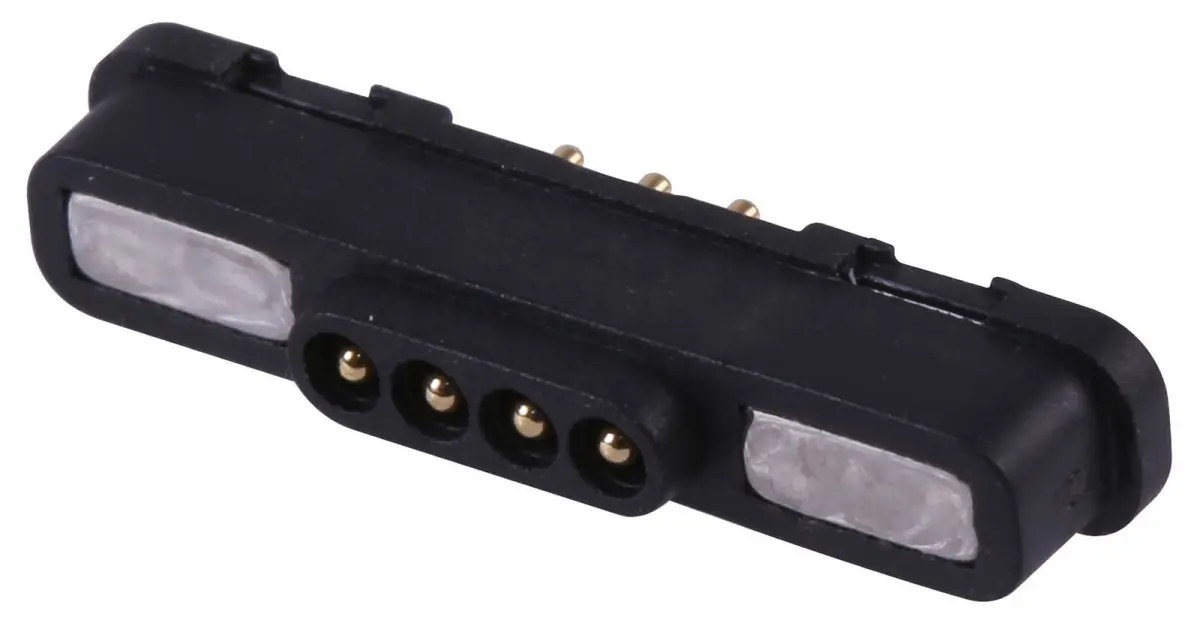

EDAC 4 Pin Magnetic Pogo Connector, Rectangular Plug, PCB Mount

The EDAC 4 Pin Magnetic Pogo Connector offers a reliable and efficient solution for board-mounted docking applications. Featuring a rectangular plug design, this magnetic docking connector is engineered for secure PCB mounting, ensuring a stable and robust connection for your electronic projects.

A key feature of this connector is its ability to handle both power and data transmission simultaneously. The innovative magnetic connection mechanism allows for quick, easy, and accurate mating and unmating, providing a convenient snap-on functionality. This significantly reduces wear and tear compared to traditional friction-fit connectors, making it an ideal choice for devices that require frequent docking cycles or where user-friendly operation is a priority.

With its four precisely crafted contacts, the connector guarantees consistent signal and power integrity. Measuring 43 mm in height, 33 mm in width, and 15 mm in depth, the compact dimensions make it highly suitable for applications where space is at a premium, whilst the 30-gram weight ensures it adds minimal bulk to your PCB assembly.

Key Features

• 4-pin configuration for combined power and data
• Magnetic attachment for easy snap-on connectivity
• Rectangular plug shape
• Designed for direct PCB mounting
• Compact and lightweight form factor
