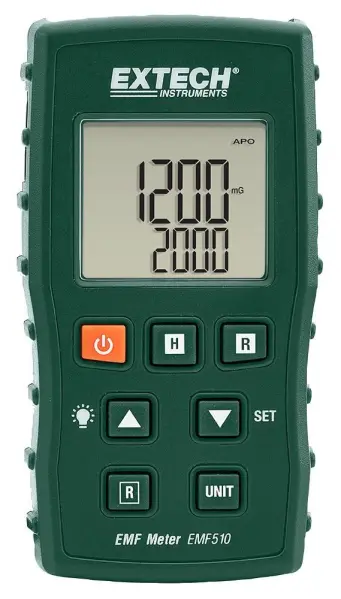

Extech EMF510 EMF/ELF Meter 2000mG/200μT with Backlit LCD

The Extech EMF510 EMF/ELF Meter is a reliable instrument for measuring electromagnetic fields and extremely low frequency levels. Featuring a built-in single-axis sensor, this meter is ideal for monitoring power lines, electrical appliances, fans, blowers, and electrical circuits. With two measurement ranges and a maximum resolution of 0.1/1mG, it provides accurate readings up to 2000mG (200μT) in milliGauss or microTesla units.

A large backlit LCD ensures clear viewing in dimly lit areas, while the ergonomic compact design includes a handy wrist strap for portability. The meter also features Data Hold and Min/Max functions, auto power off (which can be disabled), and is tripod mountable with the tripod sold separately. It is powered by 3x AAA batteries, which are included.

Key Features

• Measures EMF/ELF levels in mG or μT up to 2000mG (200μT) with two selectable ranges
• Built-in single axis sensor provides a basic accuracy of ±5% and a 30 to 300Hz bandwidth
• Backlit display for use in low-light conditions
• Data Hold and Min/Max functions for convenient data capture
• Auto power off feature with disable option
• Tripod mountable for hands-free operation
• Compact and ergonomic design with wrist strap

Specifications

• Range: 200 / 2000mG
• Maximum Resolution: 0.1/1mG
• Bandwidth: 30 to 300Hz
• Sensor Type: Single axis
• Accuracy: ±5%
• Display type: LCD
• Power supply: 3x AAA batteries (included)
• Dimensions: 107 x 58 x 25mm
• Weight: 160g

Whether you are a professional electrician or a concerned homeowner, the Extech EMF510 offers an easy and practical way to monitor electromagnetic field levels in a variety of environments.
