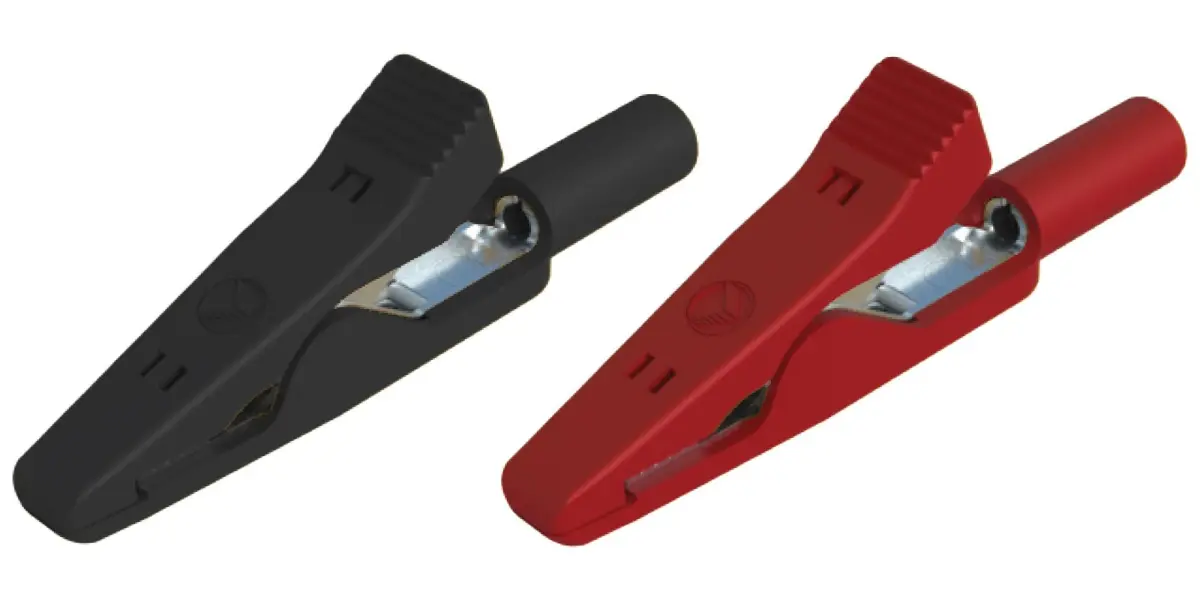

Hirschmann MA 1 Series 8A 2mm Insulated Crocodile Clips, Black & Red, Pack of 2

The Hirschmann MA 1 Series Insulated Crocodile Clips are essential miniature test and measurement accessories. Featuring high-strength insulation and nickel-plated brass/bronze jaws, they are designed for a secure, low-resistance connection. The fine wire section of the jaws ensures a firm grip even on thinner wires, preventing accidental disconnection during testing procedures.

These clips are highly versatile, capable of clamping onto flat components such as soldering eyes and wires with a maximum diameter of 4mm. The spring-loaded design provides consistent pressure, while the 2mm socket termination allows for easy and reliable connection to test leads and instruments. Constructed from durable polypropylene (PP), the housing offers excellent electrical insulation and can withstand a wide operating temperature range.

Key Features & Specifications

• High-Quality Jaws: Nickel-plated brass construction for excellent conductivity and corrosion resistance.
• Secure Clamping: Designed to grip thin wires and flat components firmly up to 4mm in diameter.
• Robust Insulation: Polypropylene (PP) housing provides high-strength electrical insulation and durability.
• Reliable Performance: Rated for 8A current, with a low contact resistance of just 5mOhm for accurate measurements.
• Wide Compatibility: Spring-loaded 2mm socket termination for universal connection to test equipment.
• Broad Temperature Range: Suitable for use in environments from -25°C to 100°C.

Supplied in a convenient pack of two with distinct insulator colours (black and red) for easy polarity identification, these clips are a reliable choice for building, repairing, or testing electrical and electronic circuits.
