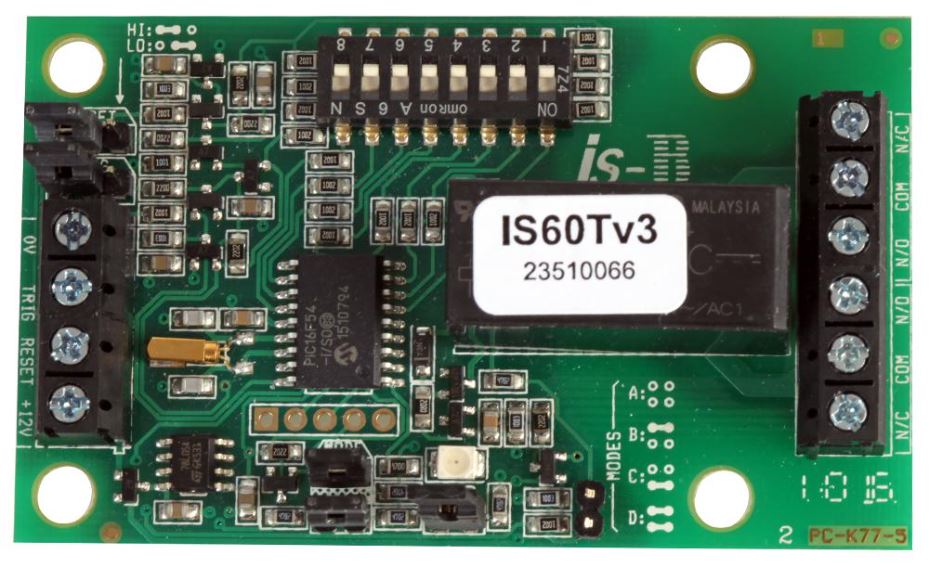

INTERFACE SOLUTIONS 0-60 Sec Timed Relay, 12/24V DC
Versatile 12/24V DC timed relay for security, fire alarms & automation. Adjustable 0-60 sec or 1-60 min range, 8A relay.
The INTERFACE SOLUTIONS 0-60 Sec Timed Relay is a simple, low-cost, and versatile solution for various timing applications. Its compact design and reliable performance make it suitable for security systems, fire alarms, door access controls, CCTV setups, and other scenarios where precise timing is essential.
Key features include dual-range timer settings: a 0-60 second range adjustable via potentiometer and a 1-60 minute range selectable by plug-in link JP2. The timer is designed for 12 or 24V DC operation and includes a robust double pole relay rated at 8A, 240V AC.
For easy monitoring, the relay comes with an LED indication to confirm operation. With minimal power consumption (quiescent current: 6mA/18mA and activated current: 40mA/70mA), this timer offers efficiency alongside reliability.
Specifications
- Timer Range: 0-60 seconds (potentiometer-adjustable) or 1-60 minutes (JP2 selectable)
- Operating Voltage: 12/24V DC
- Relay Rating: Double pole, 8A, 240V AC
- LED Indication: Included for status monitoring
- Quiescent Current: 6mA (12V), 18mA (24V)
- Activated Current: 40mA (12V), 70mA (24V)
- Dimensions (W x L x H): 57mm x 85mm x 20mm
- Weight: 40g
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Dispatched within 0-2 business days
- Delivery to United States: 3-5 business days*
- Free Shipping Included
- Security systems
- Fire alarms
- Door access controls
- CCTV setups
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Timer Range: 0-60 seconds (adjustable) or 1-60 minutes
- Operating Voltage: 12/24V DC
- Relay Rating: Double pole, 8A, 240V AC
- LED Indication: Included
- Quiescent Current: 6mA (12V), 18mA (24V)
- Activated Current: 40mA (12V), 70mA (24V)
- Dimensions: 57mm x 85mm x 20mm
- Weight: 40g
