IQD Crystal, SMD, 6MHz, 30pF, 11.4mm x 4.9mm

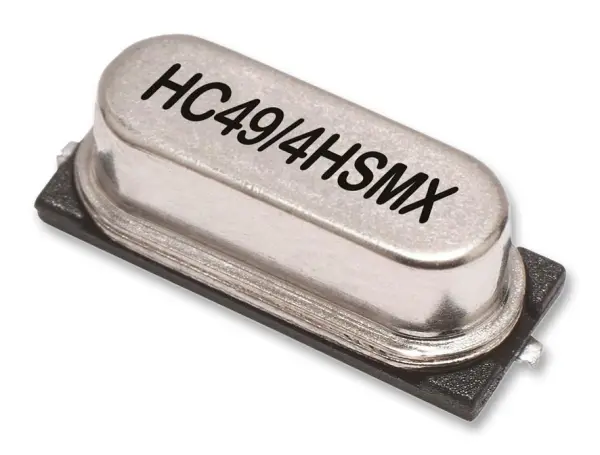

The IQD HC49/4HSMX Series Crystal is a high-precision, industry-standard SMD (Surface Mount Device) component, engineered for stable and reliable frequency generation in a wide range of electronic circuits. Operating at a nominal frequency of 6MHz, this crystal is a fundamental part of timing and clocking systems where accuracy is paramount.

Constructed using a robust resistance-welding process, the crystal is hermetically sealed within an inert atmosphere. This advanced manufacturing technique, featuring glass-to-metal seals on the leads, ensures exceptional long-term stability and protects the internal quartz element from environmental contaminants, moisture, and ageing.

This SMD crystal offers excellent frequency characteristics, with a tight frequency tolerance of ±30ppm and a frequency stability of ±50ppm across its operational range. It is designed for a load capacitance of 30pF, making it compatible with standard oscillator circuits. The compact SMD package measures 11.4mm x 4.9mm and features 2 pins for straightforward surface-mount assembly onto PCBs (Printed Circuit Boards).

Suitable for applications operating within a temperature range of -10°C to +60°C, this component delivers consistent performance in various environmental conditions. Its industry-standard footprint and reliable specifications make it a trusted choice for designers and engineers seeking a dependable timing solution.
