ISOCOM CNY17-2X Optocoupler DIP-6 Transistor Output 60mA 5.3kV
ISOCOM CNY17-2X optocoupler, 1-channel DIP-6, 60mA forward current, 5.3kV isolation, 63% CTR, ideal for industrial controls.

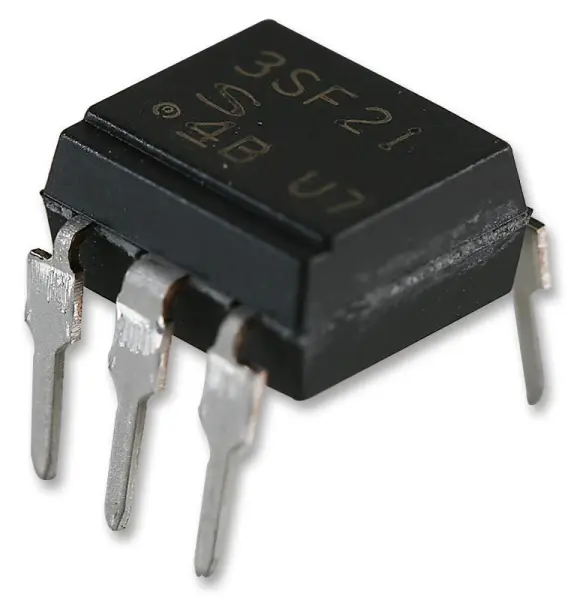

The ISOCOM CNY17-2X is a 1-channel, 6-pin optically coupled isolator, featuring an infrared light emitting diode and an NPN silicon phototransistor. It is designed to provide reliable signal transmission between systems of different potentials and impedances, making it an essential component for industrial control systems.
All electrical parameters are 100% tested, ensuring consistent performance and reliability. The device offers a high minimum collector-emitter breakdown voltage (BVCEO) of 70V, a forward current of 60mA, a reverse voltage of 6V, and a total power dissipation of 200mW. The optocoupler comes in a DIP package with 6 pins, supports a forward current of up to 60mA, and offers an isolation voltage of 5.3kV, along with a minimum current transfer ratio (CTR) of 63%.
Applications
This optocoupler is suitable for a wide range of applications, including motor drive control, industrial systems, test and measurement equipment, and signal processing. It is ideal for use in systems that require electrical isolation and signal integrity across different potential levels.
Key Features
- 1-channel, 6-pin DIP package
- 100% tested electrical parameters
- High BVCEO of 70V minimum
- 60mA forward current
- 6V reverse voltage
- 200mW total power dissipation
- Isolation voltage of 5.3kV
- CTR minimum of 63%
- Part of the CNY17-1X to CNY17-5X series
