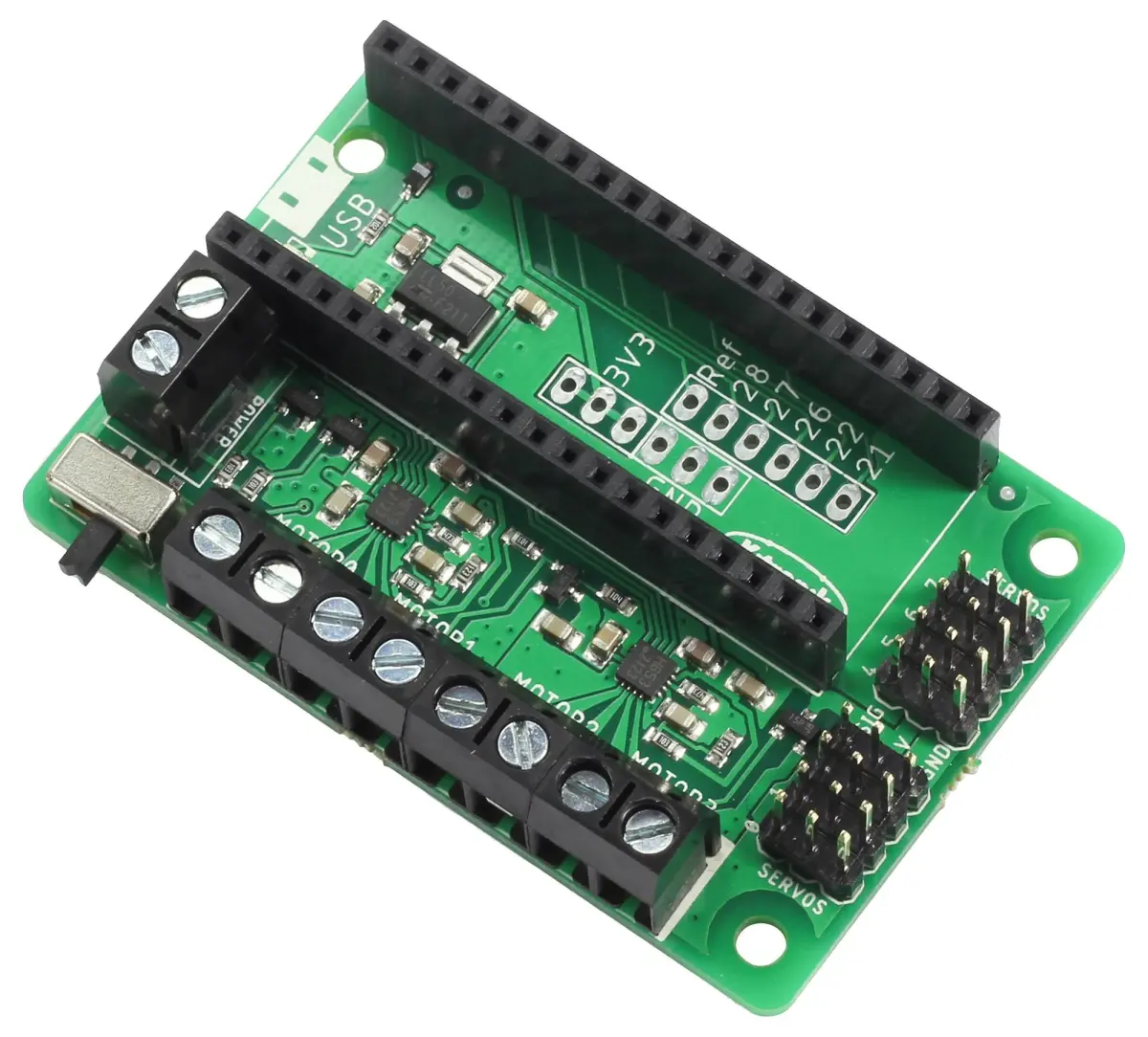

Kitronik Simply Robotics Motor Driver Board for Raspberry Pi Pico
- SKU
- C3-SC20255
- EAN
- 0660902515905
- Brand
- Kitronik
Kitronik motor driver board for Raspberry Pi Pico, supporting four DC motors or two stepper motors and eight servo outputs for robotics projects.
This item is currently out of stock...
This item is currently out of stock, but you can opt in to be notified when it is back in stock.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Tracked deliveryOrder by 13:58 UK time on a working day for same-day dispatch
- Returns acceptedUnused, in original packaging
- Secure checkoutCard, PayPal, Apple Pay, Google Pay
Technical Specifications
- Dispatched within 0-2 business days
- Delivery to United States: 3-5 business days*
- Free Shipping Included
- For robotics projects
- For buggy projects
- For mobile robotics
- For driving up to four DC motors
- Ask Claude, ChatGPT or Perplexity to find the right tool, with our live prices and stock.
- Get a ready-made basket: one link puts everything in your basket here.
- You always pay securely here: your assistant never sees your card.
- Compatibility: Raspberry Pi Pico
- Drive Capability: Up to four DC motors or two stepper motors
- Current Per Channel: Up to 1A
- Motor Outputs: Four terminal block outputs
- Servo Outputs: Eight, compatible with standard and continuous rotation servos
- Servo Connectors: Standard 3-pin
- GPIO Connections: Five external connections plus 3.3V GND supply
- Power Input: Terminal block connection
- Regulated Pico Supply: 3V
- Special Feature: Integrated overcurrent protection
- Special Feature: Reverse polarity protection
- Special Feature: Onboard power switch with green LED
- Software: MicroPython module and sample code available
- Mounting Holes: Three M3
- Width: 2.6
- Depth: 1.35
- Height: 3.65
- Weight: 260 g
