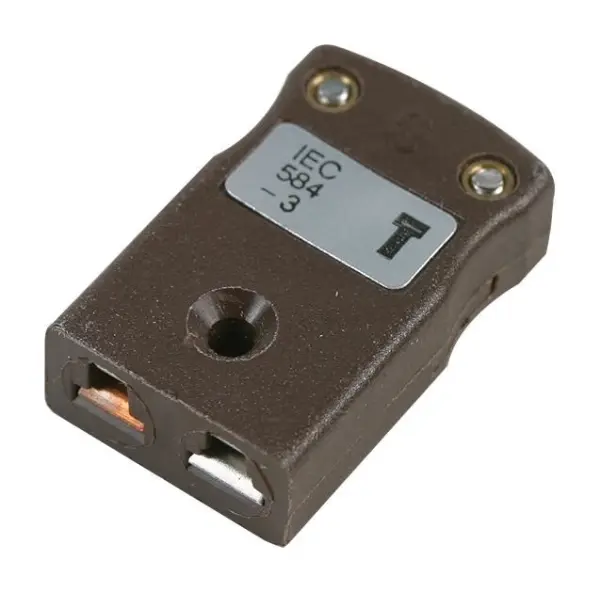

LABFACILITY Type T Miniature IEC Thermocouple Inline Socket

The LABFACILITY IM-T-LCF is a brown miniature In-line Socket specifically designed for use with T-type thermocouples. This connector is part of a precision range of miniature thermocouple connectors that accept flat pins, featuring contact materials carefully selected to be compatible with the thermocouple type for optimal signal integrity and measurement accuracy. Its design makes it an ideal solution for general-purpose instrumentation and sensing applications where reliable temperature monitoring is essential.

A key feature is the integrated polarisation of all contacts, which ensures a correct and secure connection every time, preventing accidental reversals that could lead to measurement errors. The connector is designed to accept thermocouple cable with a diameter of up to 4mm, providing good flexibility for various installation setups. For added security and strain relief, a cable clamp is available to securely fasten the cable to the socket, enhancing durability in demanding environments.

Applications

This inline socket is perfectly suited for sensing and instrumentation tasks across a wide range of industries. Its compact, miniature design allows for easy integration into tight spaces within control panels, data acquisition systems, and portable test equipment. The robust construction and adherence to international standards make it a dependable choice for laboratory research, industrial process control, and field service applications where precise temperature data is critical.

Specifications

• Connector Type: Inline Socket
• Thermocouple Type: T
• Colour: Brown (IEC coded)
• Contact Material: Suited for T-type thermocouple
• Special Feature: Polarised contacts for correct connection
• Cable Compatibility: Accepts cable up to 4mm diameter
• Accessory: Cable clamp available for secure fitting
• Calibration Standard: IEC
• Maximum Oper.
