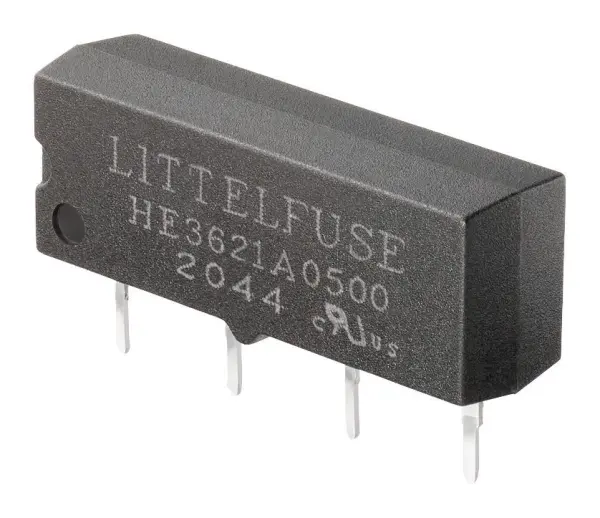

Littelfuse Single Pole Reed Relay SPST-NO, 5V dc, SIL Package

The Littelfuse Single Pole Reed Relay is a dependable switching component encased within a compact, single-in-line (SIL) epoxy-moulded package. Designed for precise control in low-power circuits, this normally open (SPST-NO) relay offers reliable performance and is protected by an integrated diode.

Its slim profile is a significant advantage, allowing for high-density PCB layouts and enabling mounting on centres as tight as 0.2 inches. This makes it an ideal choice for space-constrained applications where efficient use of board real estate is critical.

Key Features & Specifications

• Contact Configuration: Single Pole, Single Throw, Normally Open (SPST-NO).
• Coil Voltage: Rated for 5V DC operation, compatible with standard logic-level circuits.
• Switching Capacity: Capable of handling up to 500mA of switching current and a maximum voltage of 200V.
• Coil Resistance: Features a 500-ohm coil resistance, determining its current draw.
• Package: Housed in a durable, epoxy-moulded Single-In-Line (SIL) package for protection and easy through-hole mounting.
• Integrated Protection: Includes a built-in diode for coil transient suppression, safeguarding sensitive driving circuitry.

This component from the Littelfuse HE3600 Series is engineered for stability and long-term reliability in a wide range of electronic control and signal switching tasks.
