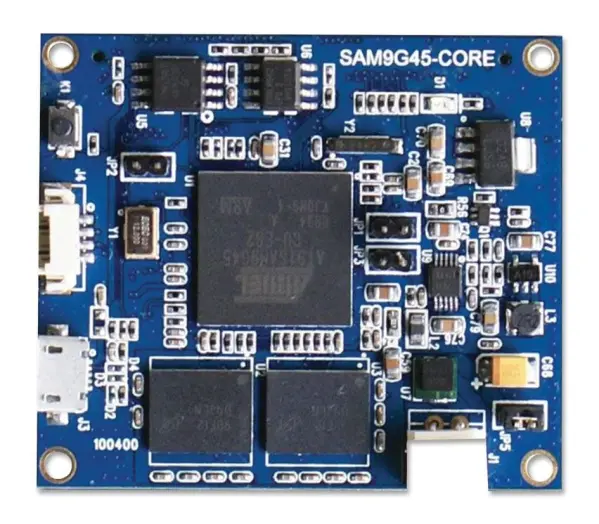

MBC-SAM9G45 ARM Core Board, ATMEL AT91SAM9G45, 128MB DDR2
MBC-SAM9G45 core board with 400MHz ARM926EJ-S, 128MB DDR2, Linux 2.6 & WinCE support. Ideal for embedded development.
The MBC-SAM9G45 is an ARM embedded core board built in with the powerful ATMEL AT91SAM9G45 embedded microprocessor. The AT91SAM9G45 is a 400MHz ARM926EJ-S based embedded microprocessor with DDR2 and LPDDR support, a wide range of connectivity and user interface peripherals, as well as a dual external bus interface. Its compact form factor (43mm x 33mm x 15mm) and low weight (500g) make it ideal for integration into a wide range of embedded solutions.
This core board is an ARM9 minimum system to start learning and developing an ARM9 application, it is also an ideal ARM9 card to integrate into your product. It extends most of the signals of the AT91SAM9G45 processor to a dedicated interface and can be used to evaluate applications based on one of the motherboards, which also leads out most signals of the ATMEL AT91SAM9G45.
Key Features
- On board memory: 4MB data flash, 256MB NAND flash, 64KB EEPROM and 128MB DDR2 SDRAM
- Micro USB connector
- Serial ports
- JTAG interface supports debugging and downloading
- Crystal: 12MHz for CPU and 32.768KHz for RTC
- Power supply: 5V, with power on indicated LED
- OS: Preinstalled Linux 2.6, supports WinCE 6.0 (BSPs Free)
- Expansion interface
The MBC-SAM9G45 is an ideal processor card that is easy to integrate into your solution, or use as a minimum system and/or a reference board for your next design. It is a powerful and flexible platform for both development and production.
