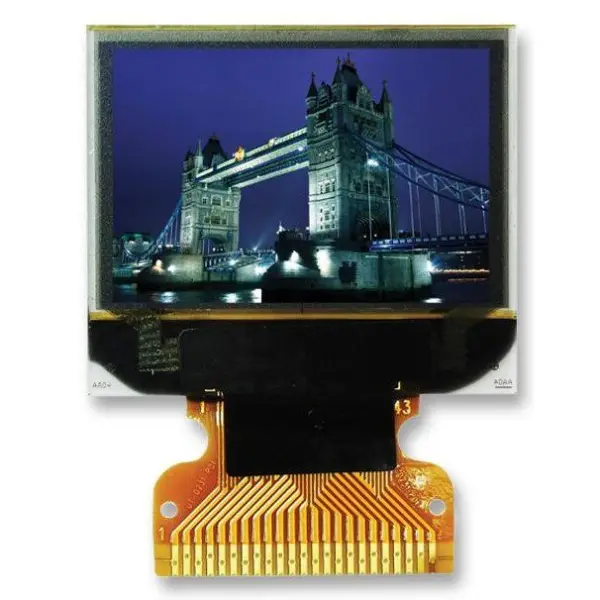

MIDAS DISPLAYS MCOT0960 OLED Graphic Display Module, 96x64 RGB, 3.8V

The MIDAS DISPLAYS MCOT0960 OLED Graphic Display Module is a high-resolution passive matrix display designed for demanding industrial applications. Featuring a crisp 96 x 64 RGB pixel array, it delivers clear and vibrant graphics, making it ideal for imaging and video vision systems. Its versatile interface supports both Parallel and SPI communication, offering flexibility for integration into a wide range of electronic designs.

Constructed using TAB (Tape Automated Bonding) technology, this module provides a reliable and compact solution. It operates on a low logic voltage of 2.8V, with a typical supply voltage of 3.8V, ensuring energy efficiency. The display is built to withstand challenging environments, with an operating temperature range from -30°C to +70°C.

Key Features & Applications

• High-Quality Display: A 1/64 duty passive matrix OLED with an RGB display appearance for excellent colour and clarity.
• Dual Interface: Offers both Parallel and SPI interface types for maximum design compatibility.
• Robust Construction: TAB display construction ensures durability and a stable connection.
• Compact Dimensions: The module measures just 25.7mm x 22.2mm, with an overall size of 33mm (W) x 43mm (H) x 15mm (D), saving valuable space on PCBs.
• Wide Operating Range: Reliable performance is guaranteed in temperatures from -30°C to +70°C.

This display module is perfectly suited for industrial control panels, portable imaging devices, medical equipment interfaces, and any application requiring a small, high-contrast graphic display with flexible connectivity options.
