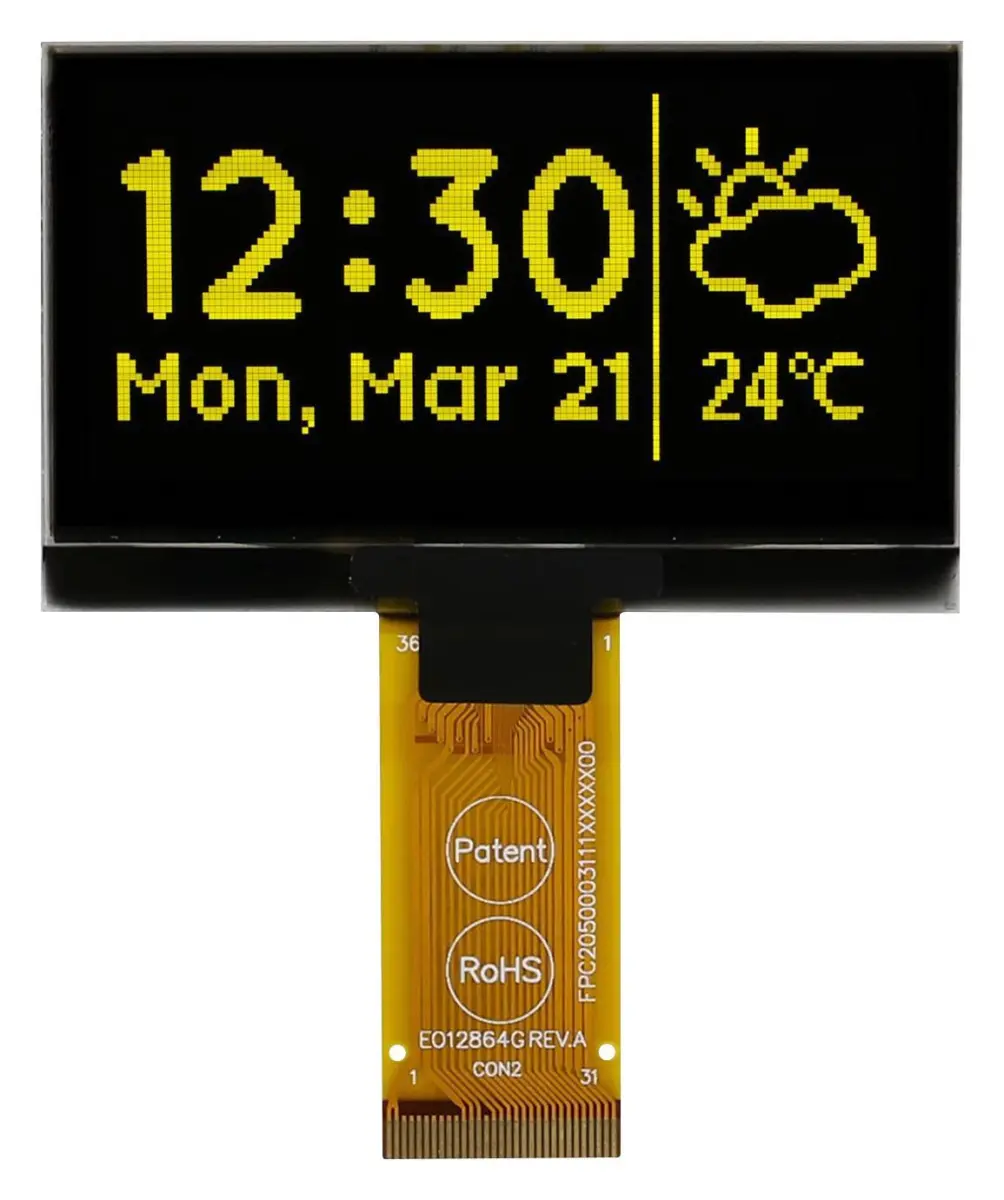

MIDAS MCOT128064H1V-YM OLED Graphic Display Module 128x64 Yellow on Black

The MIDAS MCOT128064H1V-YM is a high-resolution OLED graphic display module offering a distinct yellow on black visual appearance with a pixel resolution of 128 x 64. Engineered for reliability across demanding industrial and commercial applications, this module delivers exceptional image quality and versatile connectivity.

Featuring a 3V logic voltage, it supports three standard interface protocols: I2C, Parallel, and SPI. This flexibility allows for easy integration into a wide variety of microcontroller and embedded systems, simplifying design and development. The module utilises TAB (Tape Automated Bonding) construction, ensuring a robust and durable connection between the display and driver circuitry.

Display Performance

The display provides a large active viewing area of 55.01mm x 27.49mm (Width x Height), delivering clear and crisp graphics. With a high contrast ratio of 2000:1 and a rapid 10µs response time for both rise and fall, it ensures sharp imagery and smooth visual transitions, making it ideal for dynamic content. The wide 160° minimum viewing angle guarantees readability from various positions.

Designed for longevity, the OLED module boasts an impressive operating life of 50,000 hours. Its extended operating temperature range of -40°C to 80°C makes it suitable for use in harsh environments, from freezing outdoor conditions to high-temperature industrial settings.

Compact Design & Specifications

The module itself is compact, with overall dimensions of 60.5mm x 37mm x 2.15mm (Width x Height x Depth, excluding backlight), facilitating integration into space-constrained applications. Its light weight further aids in portable and lightweight device design.

This display is perfectly suited for applications in imaging systems, video vision equipment, instrumentation panels, portable devices, and any embedded system requiring a high-contrast, reliable graphic user inte
