Sound Alarm Project Kit

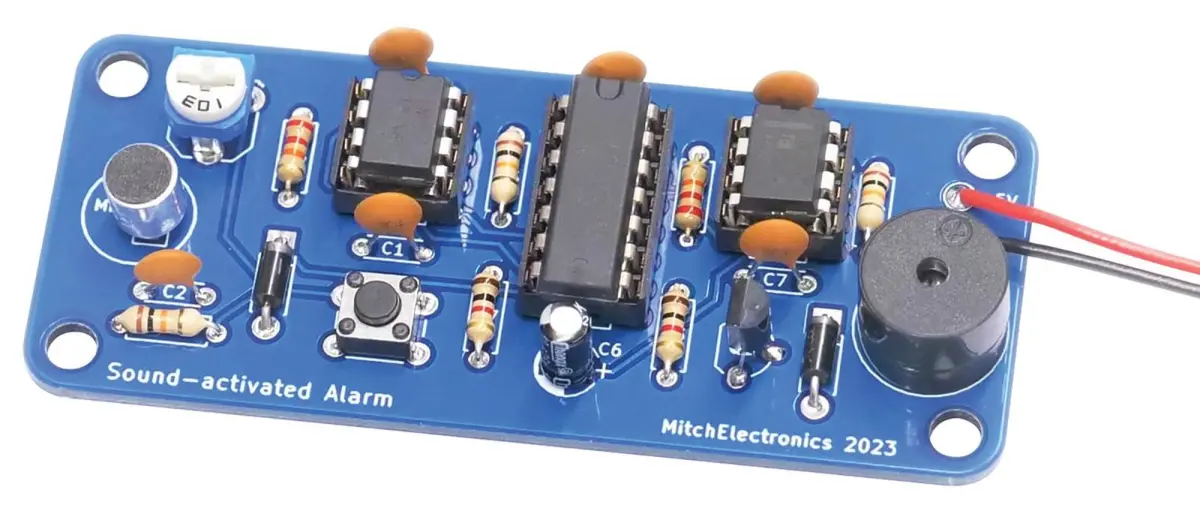

The MITCHELECTRONICS SOUND-ALARM is an engaging and simple electronics project kit that triggers a buzzer alarm whenever its onboard microphone detects sound. It's a perfect practical example for the classroom, workshop, or home, providing a hands-on lesson in how sound waves are converted into electrical signals.

At the heart of the circuit is a microphone that transforms detected sound into a corresponding electrical signal. This signal is then passed to a comparator, which checks if it exceeds a predefined threshold, triggering the alarm. The sensitivity of this detection is fully adjustable via an onboard potentiometer, allowing users to fine-tune the circuit's response to different noise levels.

A key feature of the design is its latched detection circuit. Once the alarm is triggered, it remains active until manually reset using the dedicated reset switch included on the board. This 'memory' function is excellent for demonstrating how electronic logic can maintain a state. Supplied unassembled in kit form, it is ideal for beginners looking to learn essential electronics and soldering skills. The project requires a separate 5V power supply (not included).

Key Learning Outcomes & Features

• Provides a practical introduction to signal conversion (acoustic to electrical).
• Demonstrates the function of a comparator circuit and threshold detection.
• Teaches the principle of a latched circuit and manual reset.
• Offers adjustable sensitivity for customisable operation.
• Perfect for developing soldering technique and component identification.
• Compact and self-contained design on a single PCB.

This compact and educational kit offers a rewarding build experience and a clear, functional result, making fundamental electronic concepts both accessible and fun.
