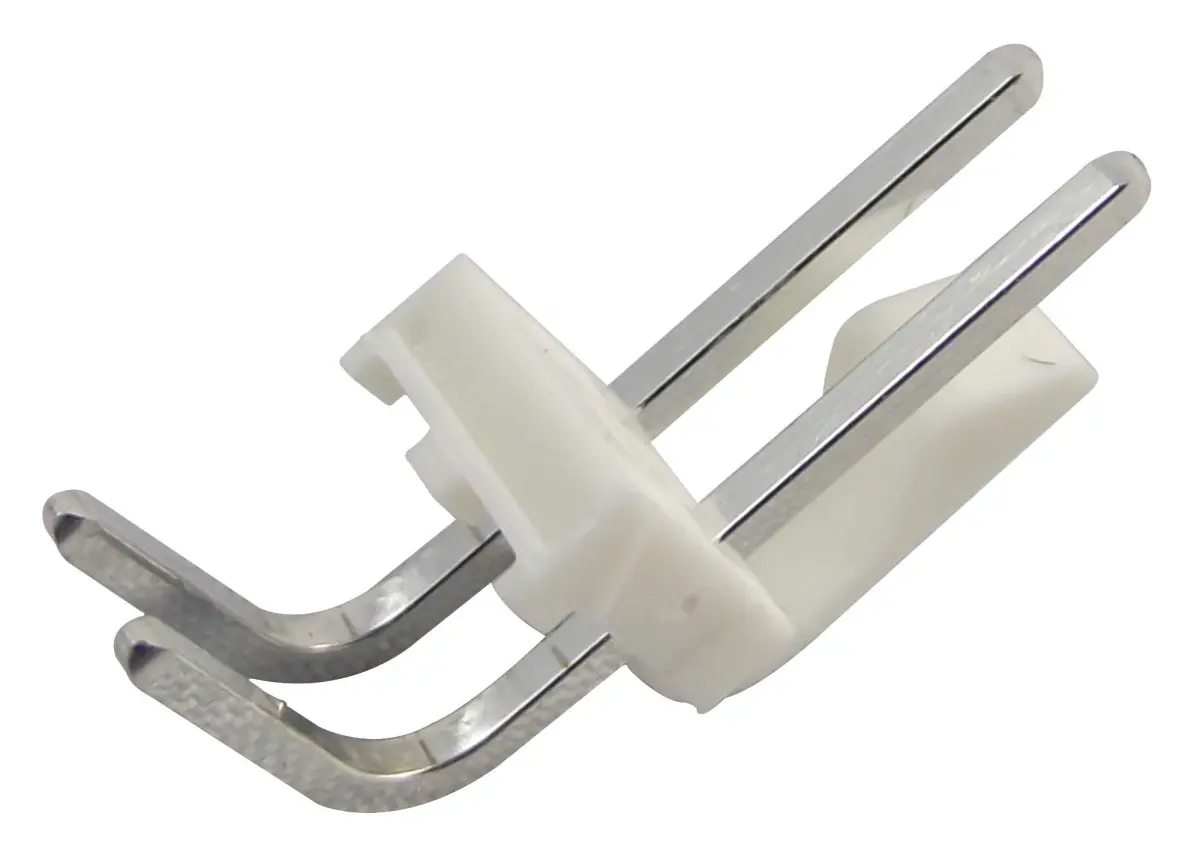

MOLEX / BRAD KK 396 Right Angle PCB Header, 3.96mm, 6 Way

The MOLEX / BRAD KK 396 Right Angle PCB Header is a robust and reliable connector designed for secure power applications. Featuring a high-temperature nylon housing, it ensures durability and stable performance in demanding environments. Its reflow matte tin plating on the brass contacts provides excellent conductivity and solderability, compatible with modern reflow processes for efficient assembly.

This 3.96mm pitch header incorporates several key design features for enhanced functionality and safety. Locking tangs on the terminals ensure a secure connection to the PCB, while polarising ribs and back walls on the housings prevent mis-mating, guaranteeing correct orientation every time. The friction lock mechanism, including friction lock ramp housings, offers a firm and reliable mating connection without the need for additional hardware.

Part of the proven KK 396 connector system, this header is engineered for power transmission where reliability is critical. Its through-hole, right-angle termination allows for compact board design and efficient use of space within electronic assemblies. The shrouded design provides added protection for the contacts, helping to prevent short circuits and physical damage during handling and use.

Specifications

• Pitch Spacing: 3.96mm
• Number of Contacts: 6
• Number of Rows: 1
• Contact Termination: Through Hole, Right Angle
• Connector Type: PCB Header
• Shroud: Shrouded
• Housing Material: High-temperature nylon
• Contact Material: Brass
• Contact Plating: Reflow matte tin
• Key Feature: Locking tangs for secure PCB mounting
• Key Feature: Polarising ribs and back walls
• Key Feature: Friction lock ramp housings

Ideal for a wide range of industrial and commercial electronic devices, this connector delivers the performance and mechanical rugged
