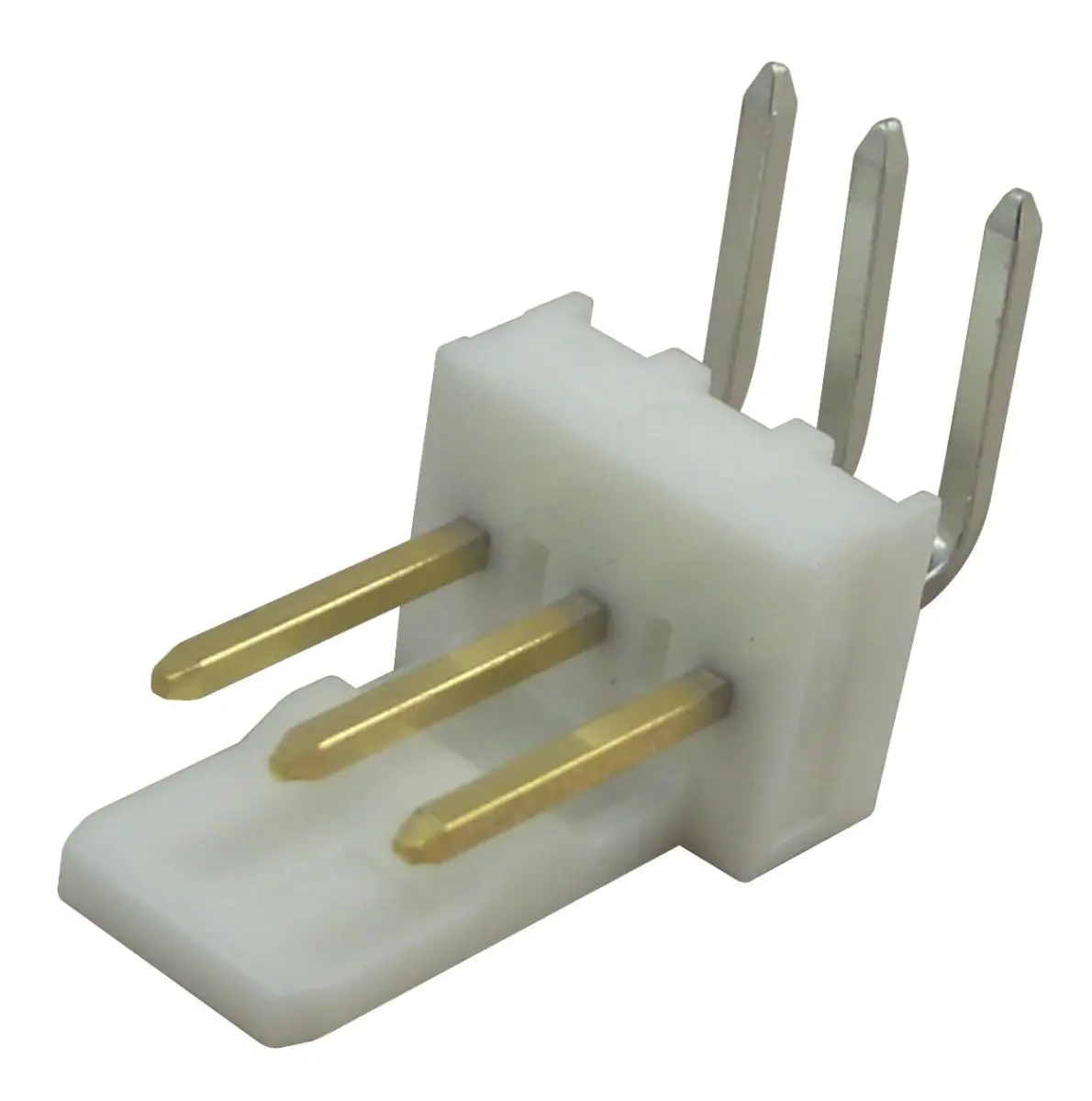

Molex KK 254 PCB Header, 3 Contacts, Right Angle

The Molex KK 254 PCB Header is a reliable signal connector solution designed for through-hole right-angle mounting on printed circuit boards. Featuring a 2.54mm pitch and a single row with 3 contacts, this header provides a compact and secure connection for a variety of electronic applications.

Constructed with brass contacts and gold plating, it ensures excellent conductivity and corrosion resistance, making it suitable for long-term performance. The shrouded connector housing adds protection against accidental disconnection and helps guide mating connectors into place, enhancing overall durability.

Key Features

• PCB header with through-hole right-angle termination for space-saving designs
• Shrouded connector for improved mating security
• Gold-plated brass contacts for reliable signal transmission
• Single-row, 3-contact configuration with a standard 2.54mm pitch
• Part of the Molex KK 254 7478 series

Applications

This PCB header is ideal for use in a wide range of electronic devices, including consumer electronics, industrial control systems, and telecommunications equipment. Its robust design and compact form factor make it a versatile choice for board-to-board or wire-to-board connections where space is at a premium.
