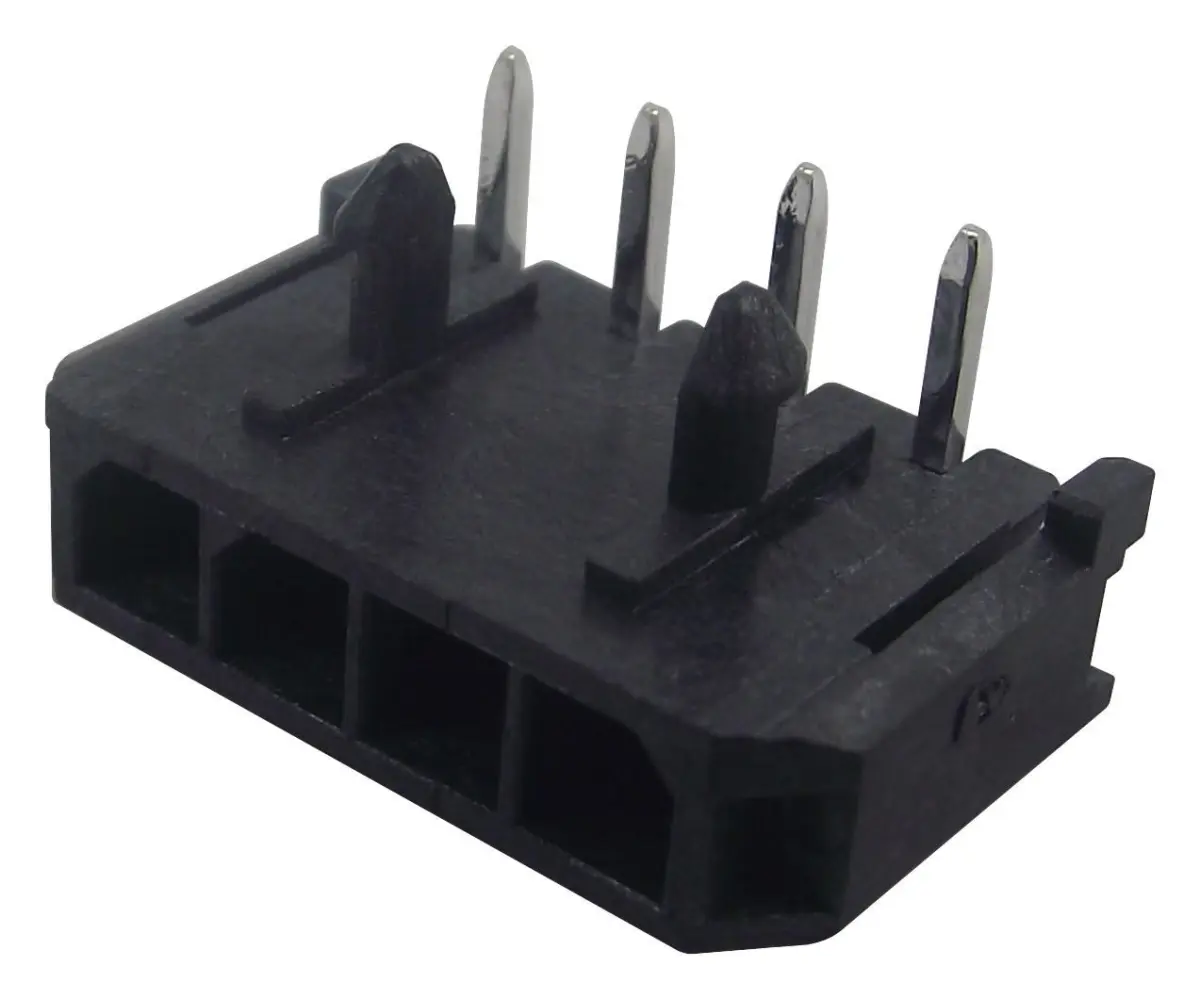

Molex Micro-Fit 3.0 Header, 4 Way, Right Angle, SMT
Molex Micro-Fit 3.0 header, 4-way, right-angle, SMT with snap-in peg lock. Compact and reliable for high-current wire-to-board connections.
The MOLEX / BRAD Micro-Fit 3.0 Header is a single-row, right-angle header with a 3mm pitch, designed for compact, high-current wire-to-board power connections. Its SMT-compatible design enables efficient surface mount assembly, while the integrated snap-in plastic peg PCB lock ensures the header remains firmly secured during reflow soldering and mating cycles, providing reliable mechanical stability in demanding applications.
With 4 ways, this header delivers a space-saving solution for power distribution in tight enclosures. The robust construction and precise 3mm pitch support high-current transmission, making it suitable for a wide range of power interconnect needs. The right-angle orientation facilitates flexible PCB layout and routing, while the snap-in peg simplifies board mounting without additional hardware.
Whether used in power supplies, industrial equipment, or consumer electronics, this header offers a dependable connection interface. The product's compact dimensions and sturdy build ensure long-term durability and consistent electrical performance, contributing to overall system reliability.
Specifications
- Pitch: 3mm
- Number of Ways: 4
- Row Type: Single row
- Orientation: Right angle (R/A)
- Mounting: SMT compatible
- PCB Lock: Snap-in plastic peg
- Weight: 76 grams
- Height: 43 mm
- Width: 33 mm
- Depth: 15 mm
