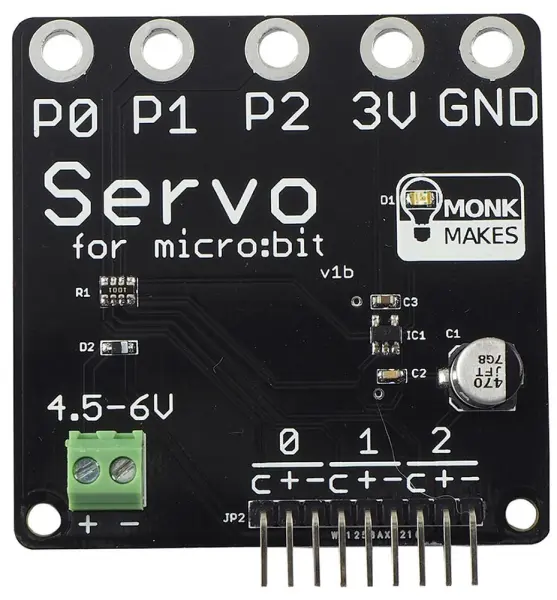

MONKMAKES Servo Board for micro:bit

The MONKMAKES Servo Board for micro:bit is an essential accessory for creating micro:bit based robotics projects. This versatile board allows you to easily connect up to three servo motors and control them effortlessly using block code, making it perfect for both beginners and experienced hobbyists looking to build interactive mechanical systems.

To operate, the board requires a separate power supply or battery pack to provide 5V or 6V to the servo motors. It is equipped with a built-in voltage regulator that safely supplies 3V to power the micro:bit itself, ensuring your device remains protected during use. The board can supply up to 2A of total current to the servos, providing ample power for demanding robotic applications.

Key Safety and Performance Features

• Integrated Voltage Regulator: Supplies a steady 3V to power the micro:bit
• High Current Capacity: Delivers up to 2A total to the connected servomotors
• Polarity Protection: Safeguards the servomotors from incorrect power connections
• Short-Circuit Prevention: Integrated 1kΩ resistors protect the micro:bit output pins from accidental short-circuits
• Power Indicator: Features an orange LED to clearly indicate when power is connected
• Capacitor: Includes an electrolytic reservoir capacitor for stable servomotor performance

Please note that this kit contains the servo board only; servo motors, the micro:bit, and a power supply are not included. With its compact design, measuring just 43 mm x 33 mm x 15 mm and weighing only 14 grams, this board is ideal for space-constrained robotics builds.
