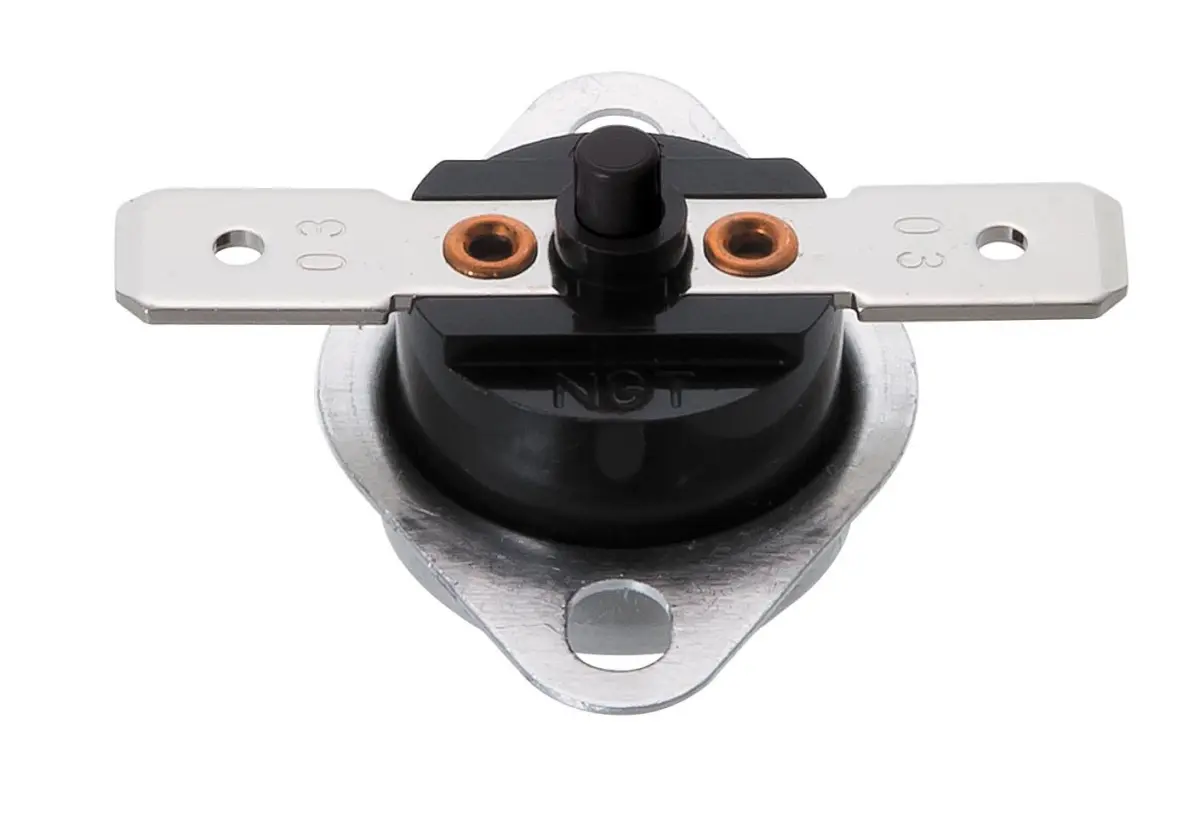

Multicomp Pro 1/2 inch Disc Thermostat Switch NC 90°C

The Multicomp Pro 1/2 inch Disc Type Thermostat Switch is a precision thermal control component designed for reliable temperature regulation. This switch is normally closed (NC) and operates with a switching temperature of 90°C, making it suitable for a wide range of heating and cooling applications where a specific temperature threshold must be maintained.

Featuring a flange mount sensor housing and quick connect terminals, this thermostat switch is engineered for straightforward installation and secure electrical connections. It supports a robust contact rating of 120VAC/15A and 240VAC/10A, enabling it to handle a variety of electrical loads in both residential and industrial settings.

This compact device measures just 33 mm in height, 22 mm in width, and 2 mm in depth, and weighs 6 grams, allowing for space-efficient integration into your project. The disc type design ensures quick response to temperature changes, delivering consistent and dependable performance.

Specifications

• Switching Temperature: 90°C
• Contact Operation: Normally Closed (NC)
• Sensor Terminals: Quick Connect
• Sensor Housing: Flange Mount
• Contact Rating: 120VAC/15A, 240VAC/10A
• Product Range: MP-05EN
• Height: 33 mm
• Width: 22 mm
• Depth: 2 mm
• Weight: 6 grams
