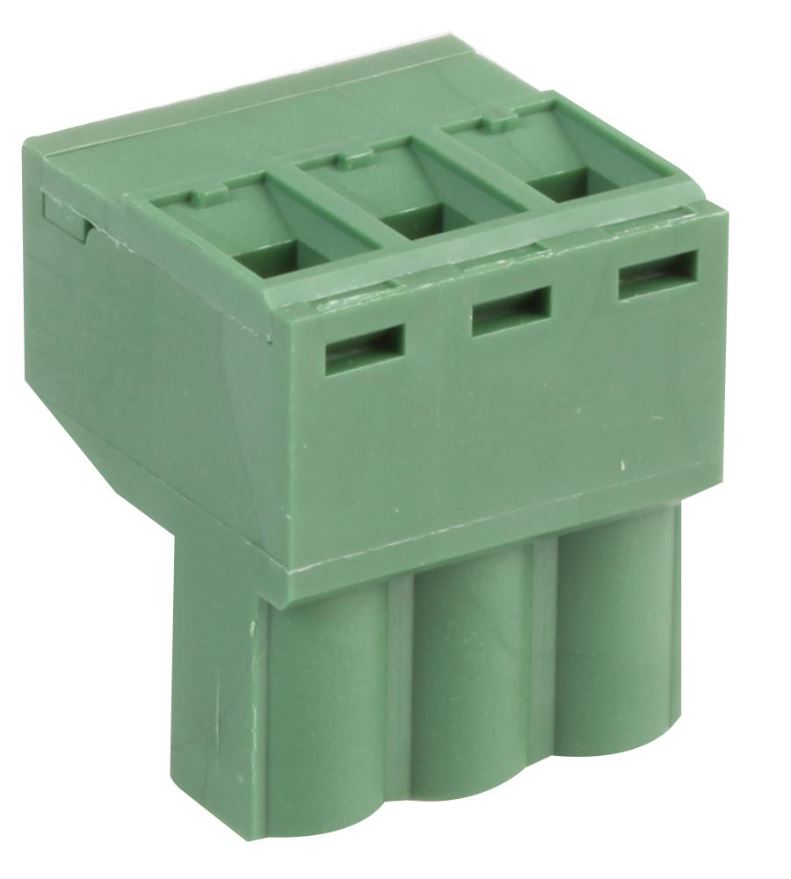

Multicomp Pro 5mm 3-Way Pluggable Terminal Block, 16A, 300V
Robust 5mm 3-way terminal block by Multicomp Pro, rated 16A/300V. Ideal for industrial wiring & control panels.
The Multicomp Pro 5mm 3-Way Pluggable Terminal Block is a high-quality electrical connector designed for reliable and secure wire termination. Constructed with a durable green polyamide 66 insulating body, this terminal block ensures excellent electrical insulation and mechanical strength.
The tin-plated phosphor bronze contacts provide low resistance and optimal conductivity, while the zinc+Cr³ screws ensure a secure and long-lasting connection. Rated for 16A current and 300V voltage, this terminal block is suitable for a wide range of industrial applications.
Key Features:
- 2000VAC minimum insulation withstand voltage for high reliability in demanding environments.
- >2000MΩ at 500V insulation resistance ensures excellent electrical insulation.
- 7 lb-inch screw torque provides secure wire connections.
- Operating temperature range from -40°C to 105°C, making it suitable for extreme conditions.
- 5mm pitch spacing allows for compact and efficient wiring.
- Screw terminal connection method for easy and reliable wire termination.
Applications
- Ideal for industrial environments requiring robust and reliable electrical connections.
- Suitable for control panels, power supplies, and other electrical equipment.
Warning: Market demand for this product may cause extended lead times. Delivery dates may fluctuate, and the product is exempt from discounts.
Need larger quantities? Need additional quantities? Get in touch and we'll arrange it for you.
- Dispatched within 0-2 business days
- Delivery to United States: 3-5 business days*
- Free Shipping Included
- Industrial applications
- Control panels
- Power supplies
- Electrical equipment wiring
- Pitch Spacing: 5mm
- No. of Positions: 3 Ways
- Wire Size (AWG): 26AWG to 12AWG
- Wire Connection Method: Screw
- Rated Current: 16A
- Rated Voltage: 300V
- Insulation Resistance: >2000MΩ at 500V
- Screw Torque: 7 lb-inch
- Operating Temperature Range: -40°C to 105°C
- Minimum Insulation Withstand Voltage: 2000VAC
