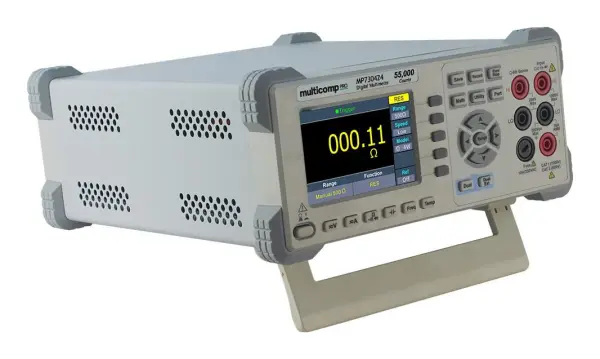

Multicomp Pro Bench Top Digital Multimeter 4.5 Digit 10A

The Multicomp Pro Bench Top Digital Multimeter 4.5 Digit 10A is a bench top digital multimeter with a 4.5 digit display, a 55,000 count resolution and AC/DC current measurement up to 10A. It is designed for electronic testing and measurement applications in laboratory and workshop environments. The bench-top design ensures stable placement during use.

Its 3.7-inch LCD screen with a resolution of 480 x 320 pixels displays readings clearly, and dual-line display support allows multiple parameters to be viewed at the same time. The trend analysis function in chart mode provides visual data tracking. The multimeter offers reading rates of up to 65 readings per second, allowing fast signal changes to be captured.

Key Features

• True RMS Measurement: Measures AC voltage and current on non-sinusoidal waveforms.
• High Accuracy: DC voltage accuracy of up to 0.025%.
• Comprehensive Functions: Measures AC/DC voltage (up to 750V AC / 1kV DC), AC/DC current (up to 10A), resistance (up to 50 MΩ), capacitance, frequency, temperature, continuity, and diode tests.
• Data Handling: Data logging and record function stores measured data in internal memory, which can later be read via a PC for analysis.
• Remote Connectivity: Supports SCPI commands for remote control via the built-in RS232 interface, facilitating automated test setups.

Power and Construction

Powered by a universal input range of 90V to 240V AC at 50Hz, the unit is supplied with both a UK mains plug (Type G) and a 2-pin Euro Type C mains plug for flexible use. Its compact dimensions are 235 mm (W) x 110 mm (H) x 295 mm (D), and it weighs 3220 gm.

Choose the Multicomp Pro Bench Top Digital Multimeter for electronic testing in laboratory and workshop settings where precise voltage, current and resistance readings, data logging and RS232 remote control are required.
