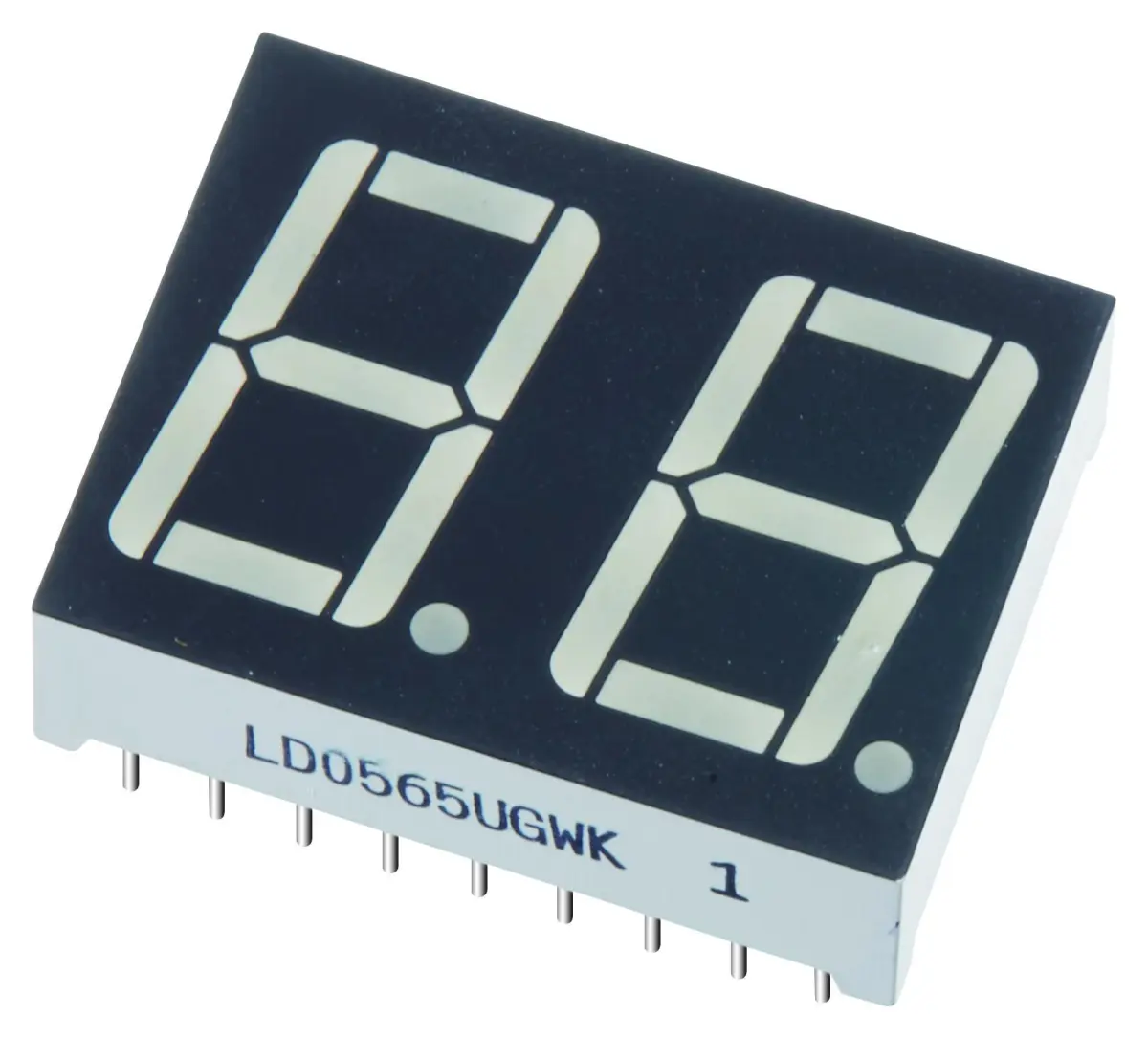

Multicomp Pro Green 7 Segment LED Display 2 Digit 14.2mm

The Multicomp Pro Green 7 Segment LED Display is a high-quality dual-digit common cathode display designed for a wide variety of electronic applications. Featuring a 0.56-inch character size (14.2mm) and constructed with robust GaP dice material, this display delivers reliable and clear visual output for your projects.

It emits a vibrant green colour complemented by a white diffused lens and black surface ink, ensuring excellent contrast and readability across different lighting conditions. The display offers a maximum luminous intensity of 3.6mcd at a forward current of 20mA, with a dominant wavelength of 570nm.

Key Specifications

• Forward Voltage: 2.2V (Typical), 2.6V (Maximum)
• Forward Current: 20mA
• Peak Forward Current: 100mA
• Power Dissipation: 85mW
• Peak Emission Wavelength: 568nm
• Dominant Wavelength: 570nm
• Spectral Line Half-Width: 30nm
• Operating Temperature Range: -40°C to +85°C

With compact dimensions of 43mm x 33mm x 15mm and a lightweight design of just 2.5 grams, this LED display is exceptionally well-suited for integration into portable devices and consumer electronics where space and weight are at a premium. Its wide operating temperature range further enhances its versatility for demanding environments.
