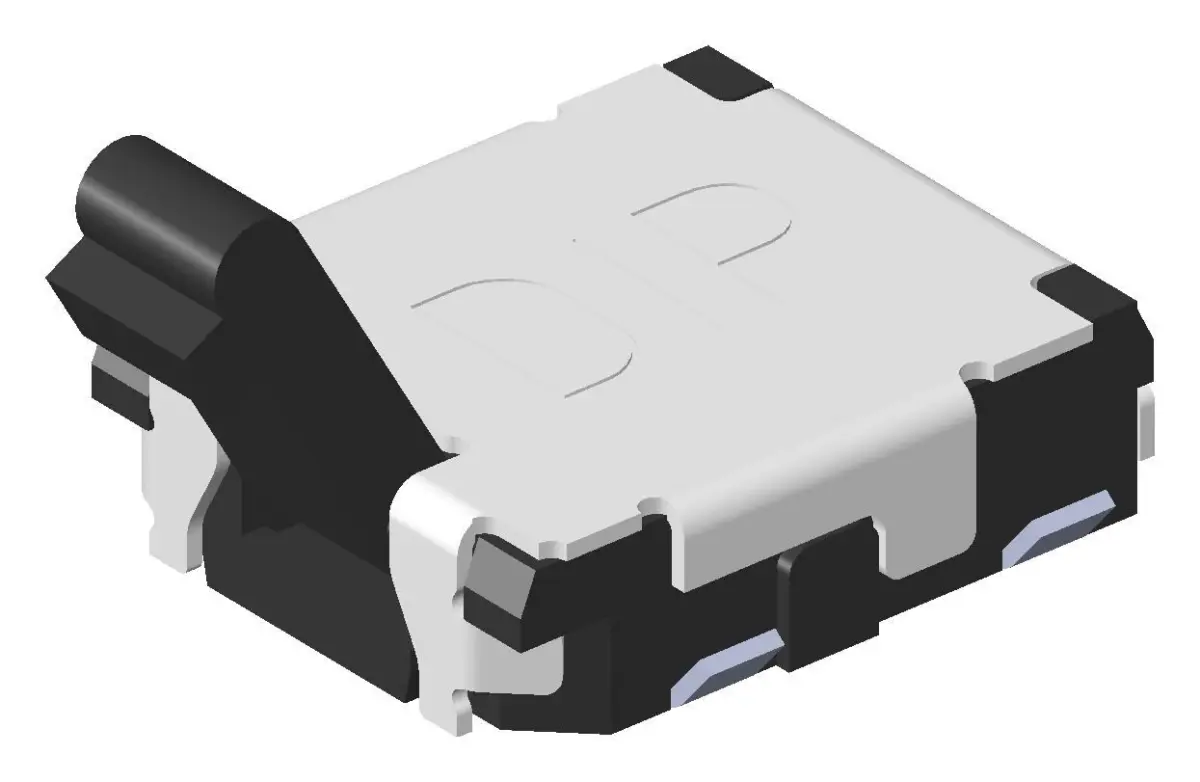

Multicomp Pro SMD Detector Switch SPST-NC, 5V DC

The Multicomp Pro SMD Detector Switch is a compact and reliable component designed for precise detection applications. Its surface-mount design (SMD) with flat terminals allows for efficient integration into modern electronic assemblies, saving valuable board space.

This switch operates as a Single Pole, Single Throw, Normally Closed (SPST-NC) device, rated for a maximum contact current of 1mA at 5V DC. This makes it ideally suited for low-power signal circuits where reliable detection is critical. The actuator features a defined travel of 2.5mm and requires an operating force of 35gf, providing a consistent tactile response.

Constructed to meet the demands of compact electronics, its small form factor enables use in space-constrained designs. The switch's robust build ensures dependable performance in its intended applications, contributing to the overall reliability of the end product.

Specifications

• Contact Configuration: SPST-NC (Single Pole, Single Throw, Normally Closed)
• Contact Current Max: 1mA
• Contact Voltage DC Nom: 5V
• Switch Terminals: Surface-Mount Device (SMD), Flat Terminals
• Actuator Travel: 2.5mm
• Operating Force: 35gf
• Dimensions: 33mm (Width) x 43mm (Height) x 15mm (Depth)
• Weight: 0.04 grams

With its defined electrical and mechanical characteristics, this detector switch is a key component for creating responsive and efficient electronic control systems.
