Nexperia PMV65XP P-Channel MOSFET 20V 4.3A TO-236AB

The Nexperia PMV65XP,215 is a P-channel enhancement mode Field-Effect Transistor (FET) housed in a Surface Mounted Device (SMD) plastic package, utilising advanced Trench MOSFET technology. This component is designed for efficient power management and signal processing applications, offering a low threshold voltage and low on-state resistance to minimise power losses and improve overall system efficiency.

With a drain-source voltage (Vds) of 20V and a continuous drain current (Id) of 4.3A, this MOSFET is suitable for a range of switching and amplification tasks. The device features a low on-state resistance of 0.074 ohm (at a test voltage of 4.5V), which helps reduce conduction losses. The gate-source threshold voltage is maximised at 750mV, allowing for easy drive from low-voltage logic. With a power dissipation of 833mW, it can handle moderate power levels in compact designs.

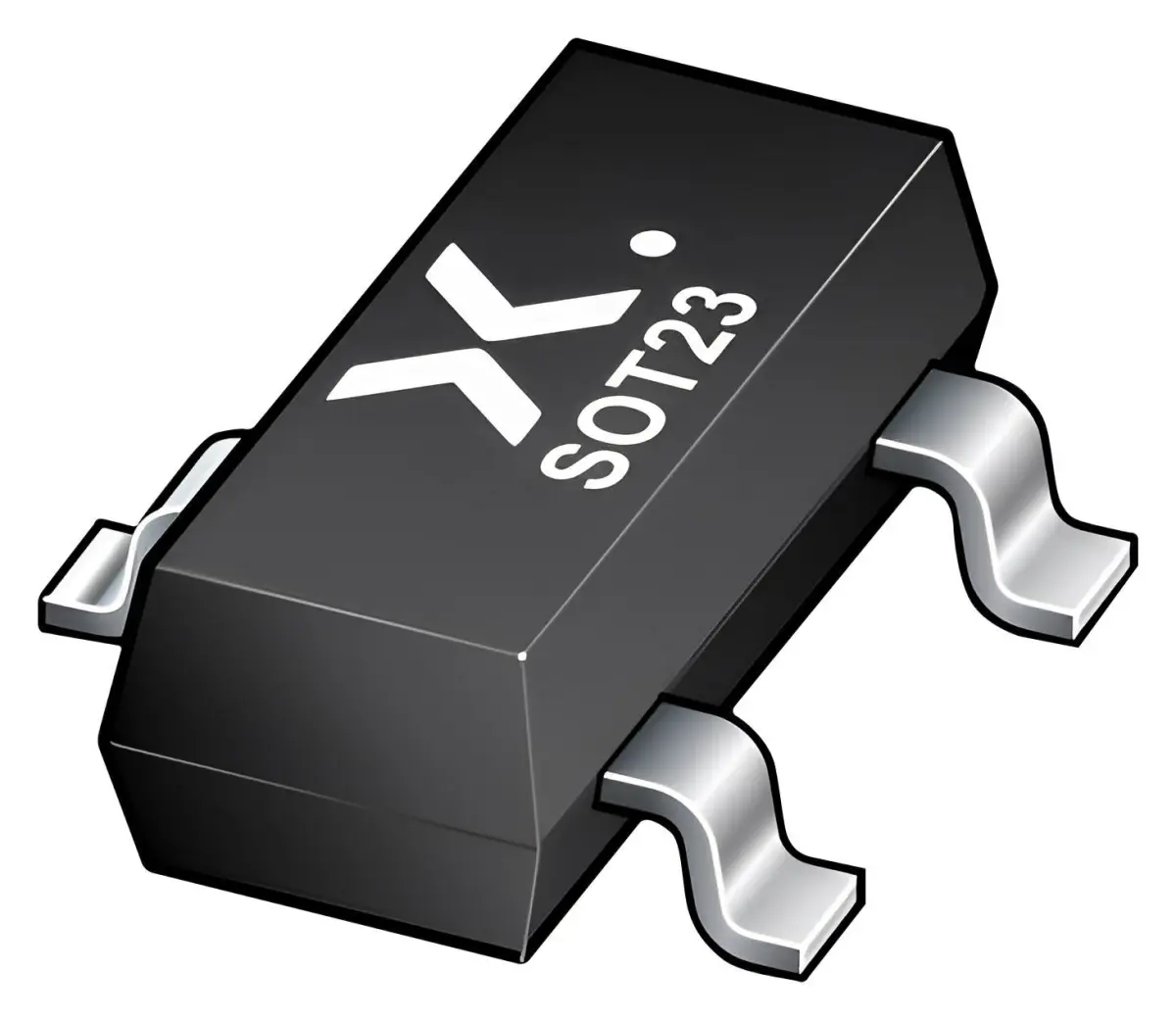

The transistor is supplied in a TO-236AB (SOT-23) package, designed for surface mount assembly, and features 3 pins. It operates reliably up to a maximum junction temperature of 150°C. This component is ideal for use in audio amplification, power management circuits, and signal processing applications where space is at a premium.
