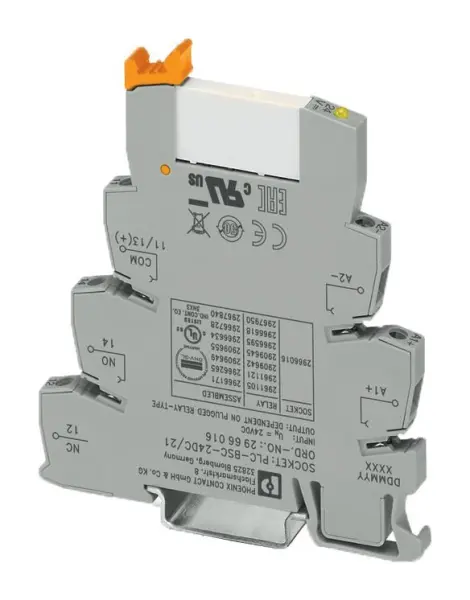

Phoenix Contact DIN Rail Relay Module, SPDT, Non Latching, 24V DC, 6A

The Phoenix Contact DIN Rail Interface Relay Module is a professional-grade, pluggable power contact relay designed for seamless integration into control panels and industrial cabinets via a standard DIN rail NS 35/7.5. This slim-design module combines a base terminal block with a reliable screw connection and a removable miniature relay, offering an efficient and flexible interface for PLC systems.

Engineered for safety and durability, it features safe isolation between the coil and contact in accordance with DIN EN 50178 standards, ensuring operational safety in demanding environments. The module is equipped with an RT III sealed relay, integrated input circuitry, and interference suppression, providing stable and reliable switching performance while protecting sensitive electronics from electrical noise.

For streamlined installation and maintenance, the module supports the use of functional plug-in bridges and enables an efficient connection to system cabling using a V8 adapter, significantly reducing wiring time and complexity. Its compact form factor allows for high-density mounting, maximising space within control enclosures.

Key Specifications

• Contact Configuration: SPDT (Single Pole, Double Throw)
• Coil Voltage: 24V DC
• Coil Type: Non-latching
• Contact Rating: 6A @ 250V AC / 250V DC
• Contact Material: Silver Tin Oxide for long-lasting, reliable switching
• Mounting: DIN Rail NS 35/7.5
• Terminal Type: Screw connection
• Design: Slim-profile, pluggable relay on a fixed base terminal block
• Safety Standard: Safe isolation per DIN EN 50178
• Features: RT III sealed relay, integrated interference suppression, functional plug-in bridges

This robust relay module is an essential component for creating reliable and safe control interfaces in a wide range of automation and electrical
