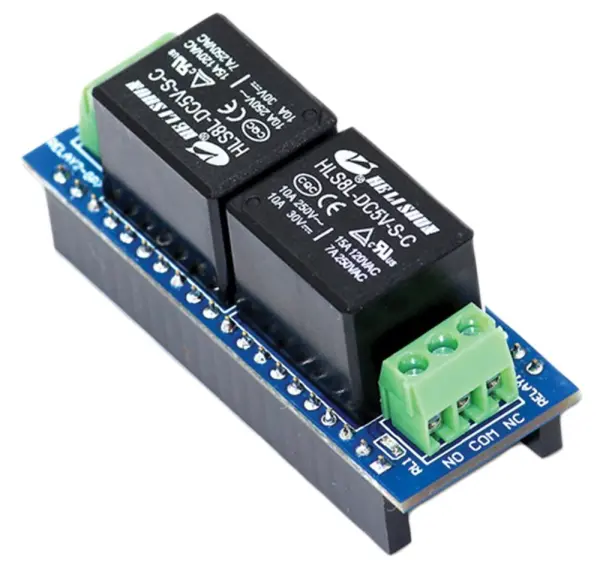

Pico Dual Channel Relay HAT

The Pico Dual Channel Relay HAT is a stackable 40-pin expansion board designed for direct connection to the Raspberry Pi Pico, enabling you to safely control high-power devices from your microcontroller projects. This compact HAT is fitted with two robust relays, each capable of handling substantial loads up to 7A/250V AC or 10A/30V DC, making it an essential component for home automation, industrial control, and prototyping applications where electrical isolation is critical.

Featuring an optoisolated design, the board provides essential electrical separation between the sensitive Pi Pico and the high-voltage/current circuits being switched, protecting your main board from potential surges and noise. An integrated power LED offers clear visual confirmation that the board is correctly powered and operational. The 5V operating voltage aligns perfectly with the Pi Pico's GPIO, ensuring straightforward integration and control via simple digital signals.

Key Specifications & Features

• Dual Relay Channels: Control two independent high-power circuits.
• High Load Capacity: Supports 7A at 250V AC or 10A at 30V DC per relay.
• Optoisolated Design: Protects the Pi Pico from the switched circuits for enhanced safety and reliability.
• Stackable 40-pin Header: Connects directly to the Pi Pico's GPIO and allows for further expansion.
• Integrated Power LED: Provides immediate status indication.
• Compact Form Factor: Designed to match the footprint of the Raspberry Pi Pico for a neat, integrated setup.

Please note: For direct connection, the Raspberry Pi Pico requires male headers to be soldered onto it with the pins pointing downwards. The Raspberry Pi Pico itself is not included with this relay HAT.
