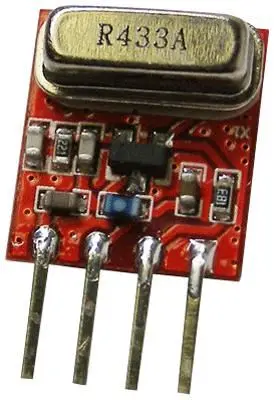

QUASAR Mini AM Transmitter Module, 433MHz

The QUASAR Mini AM Transmitter Module is a complete RF transmitter operating at a highly stable frequency of 433.92MHz. Designed for reliability and ease of integration, this module requires no adjustable components, making it incredibly straightforward to implement into your electronic projects. It supports CMOS and TTL inputs, offering versatile compatibility with a wide range of microcontrollers and logic circuits.

With a generous operating voltage range of 1.5V to 5V and a rapid turn-on time of just 20ms, this module is both power-efficient and highly responsive. It utilises ASK modulation and supports data rates between 200Hz and 3kHz, achieving an effective transmission range of up to 50 metres.

Key Specifications

• Operating Frequency: 433.92MHz
• Transmission Range: 50m
• Operating Voltage: 1.5V - 5V
• Modulation: ASK
• Turn-On Time: 20ms
• Data Rate: 200Hz - 3kHz
• Input: CMOS / TTL

Compact and lightweight at just 5 grams, with dimensions of 43mm x 33mm x 15mm, this transmitter module is perfectly suited for space-constrained applications where consistent wireless performance is essential.
