RFID Reader Module USB Output 13.56MHz 5V
Compact RFID reader module with USB output, 13.56MHz, 5V. Compatible with Mifare tags. Read range up to 100mm.

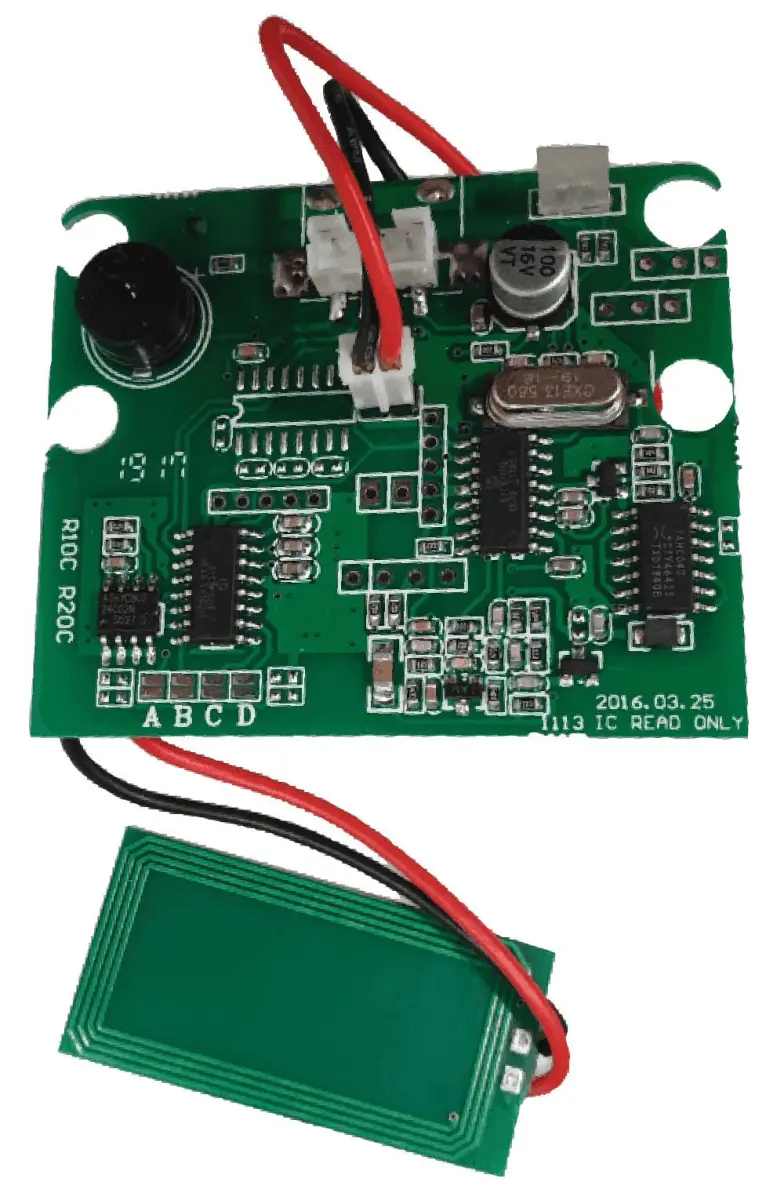

This RFID Reader Module from RF Solutions offers a compact and simple plug-in solution for general purpose RFID applications. When a compatible RFID tag is brought within range, the module outputs a 10-digit decimal USB serial data stream containing the tag data. It is compatible with all known ISO14443A compatible cards and tags, including Mifare (S50, S70, ntag203 etc.).
The module operates at 13.56MHz frequency and provides a read range of up to 100mm. It requires a supply voltage of +5Vdc at 100mA and offers USB data output with baud rate options of 9600bps or 115200bps. The communications speed is 106Kbit/s. The module dimensions are 44x58mm, making it easy to integrate into various systems.
Applications
This versatile RFID reader is suitable for asset and stock tagging, access control, payment systems, resource management, and identification control. Its USB interface simplifies connection to host systems.
Specifications
- Frequency: 13.56MHz
- Interface: USB
- Read Range: Up to 100mm
- Supply Voltage: +5Vdc
- Current Consumption: 100mA
- Baud Rate: 9600bps or 115200bps
- Data Output: 10-digit decimal USB serial data stream
- Compliance: ISO/IEC 14443 TypeA
- Module Dimensions: 44x58mm
This product comes with a weight of 64 grams and dimensions of 43x33x15mm (HxWxD). Please note that the memory size and minimum supply voltage are not specified by the manufacturer.
