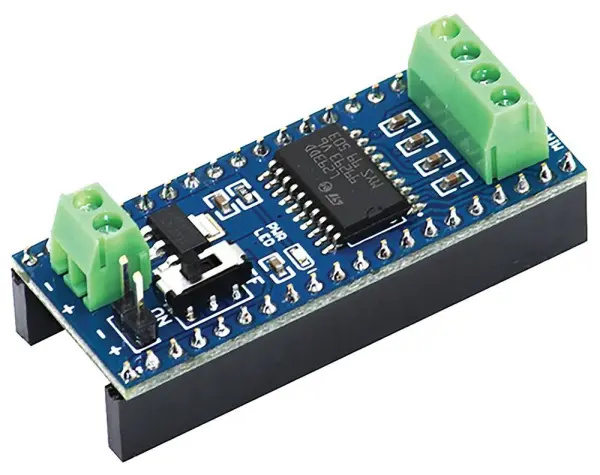

Pico Motor Driver HAT for Raspberry Pi Pico

The Pico Motor Driver HAT from SB Components is a compact and versatile motor control module designed specifically for integration with the Raspberry Pi Pico. This stackable board provides a straightforward solution for adding robotic motion to your projects, enabling you to drive two DC motors bidirectionally or operate a single stepper motor with precision. It's an ideal foundation for simple buggy builds, robotic arms, or any project requiring controlled motor movement.

At the heart of the module is the reliable L293D H-bridge integrated circuit, a proven driver for efficient motor control. The board supports a motor input voltage range of 6-12V, supplied via a convenient screw terminal, allowing flexibility with different motor types. A physical on/off power switch adds an extra layer of safety and control during development and testing.

The board features a 40-pin stackable design, enabling a direct and secure connection to the GPIO header of a Raspberry Pi Pico. This plug-and-play architecture saves space and simplifies wiring, making it perfect for compact projects. For a successful connection, please note that your Raspberry Pi Pico must have male headers soldered to it, with the pins pointing downwards.

Key Features:

• Drive two DC motors simultaneously or a single stepper motor.
• Powered by the robust H-bridge L293D IC.
• Supports a 6-12V motor input range for flexibility.
• Features a screw terminal for secure motor power supply connections.
• Stackable 40-pin design for a direct, low-profile connection to the Raspberry Pi Pico.
• Includes a physical on/off power switch for safe operation.

With its small footprint and user-centric design, the Pico Motor Driver HAT is the perfect companion for educators, hobbyists, and makers embarking on electronics and robotics projects with the Raspberry Pi Pico platform.
