SB Components W2812B Right Angle RGB LED Ring 32 Way

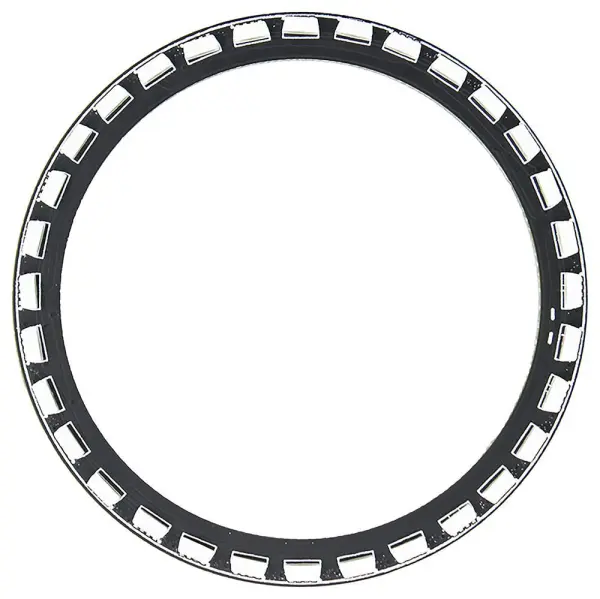

The SB Components W2812B Right Angle RGB LED Ring is a circular PCB board featuring 32 vibrant right angle WS2812B-4020 RGB LEDs with integrated drivers. Each LED can be individually addressed and controlled, making it ideal for creating dynamic lighting effects in your projects. Fully compatible with the NeoPixel Arduino and MicroPython libraries, this LED ring is a versatile choice for makers and developers.

Utilising a one-wire communication protocol, the ring simplifies wiring and is perfect for controllers with limited outputs. Data signals can be sent via the in/out JST connectors or exposed PCB pads, and multiple rings can be cascaded for larger installations. The LEDs are daisy-chained together, supporting cascading of multiple rings for extended displays.

Key Features

• 32 RGB LEDs: WS2812B-4020 right angle LEDs, individually addressable
• Compatibility: Works with NeoPixel Arduino and MicroPython libraries
• One-Wire Protocol: Simplifies wiring and reduces pin usage on your controller
• Connectivity: Data via JST connectors or exposed PCB pads
• Versatile Use: Supports cascading multiple rings for larger projects

Specifications

• Supply Voltage: 3.7-5V
• Typical Current Consumption: 500-700mA (full brightness)
• Communication: One-wire protocol
• Board Dimensions: 43mm x 33mm x 15mm

Important Notes

• A microcontroller or controller board is required to send data signals to the LEDs.
• Do not cascade more than two rings when using LEDs at full brightness.
• Supplied as LED board only; Pico and accessories shown are for illustration purposes only.
