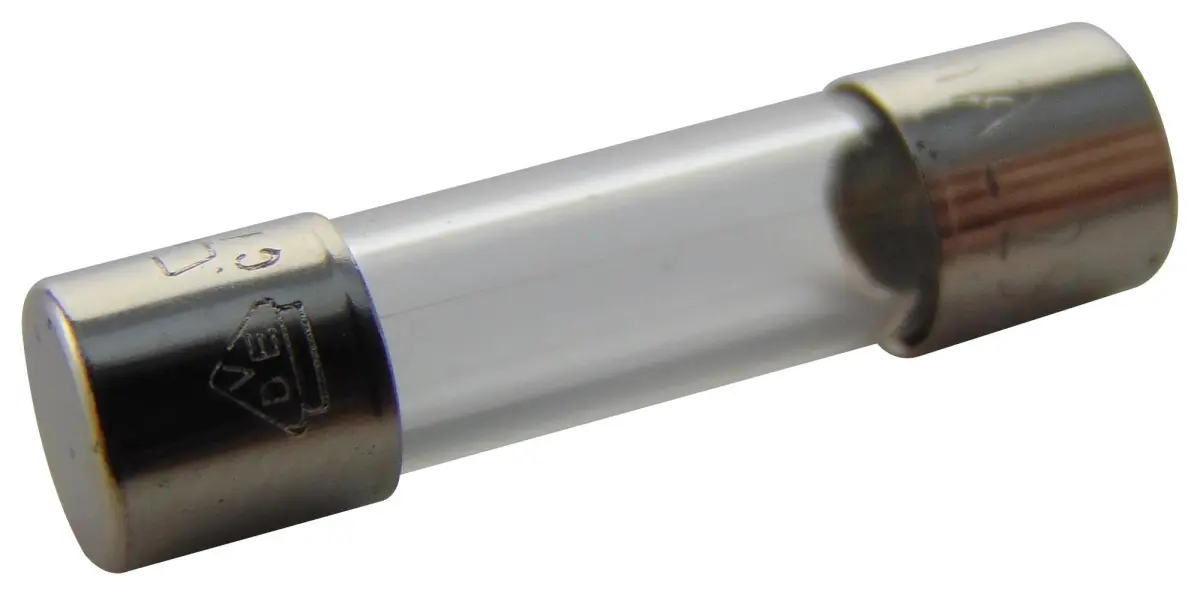

SCHURTER Time Delay Glass Cartridge Fuse 5mm x 20mm 0.16A 250V

The SCHURTER Time Delay Glass Cartridge Fuse is engineered for reliable low-voltage protection in a wide range of electrical and electronic equipment. This non-resettable, anti-surge fuse features a glass tube construction with nickel-plated copper alloy end caps, ensuring consistent performance and durability. It is designed to withstand temporary current surges without blowing, making it ideal for protecting sensitive circuits from in-rush currents commonly found in transformers, motors, and power supplies.

With a low breaking capacity, it provides effective primary and secondary circuit protection, safeguarding devices from overcurrent and fault conditions. The fuse meets applicable international safety standards, giving you confidence in its quality and reliability for critical applications. Its time-delay characteristic allows it to handle short, harmless overloads, preventing nuisance tripping and ensuring operational continuity.

Key Specifications

• Fuse Type: Non-resettable, time-lag (anti-surge)
• Current Rating: 0.16A (160mA)
• Voltage Rating: 250V AC
• Dimensions: 5mm diameter x 20mm length
• Breaking Capacity: 35A AC
• Construction: Glass tube with nickel-plated copper alloy end caps
• Power Dissipation: Maximum 1600mW
• Voltage Drop: Maximum 1900mV
• Ambient Temperature Range: -55°C to +125°C

This SCHURTER fuse is a vital component for maintaining the safety and longevity of electronic equipment, offering precise protection where it is needed most.
