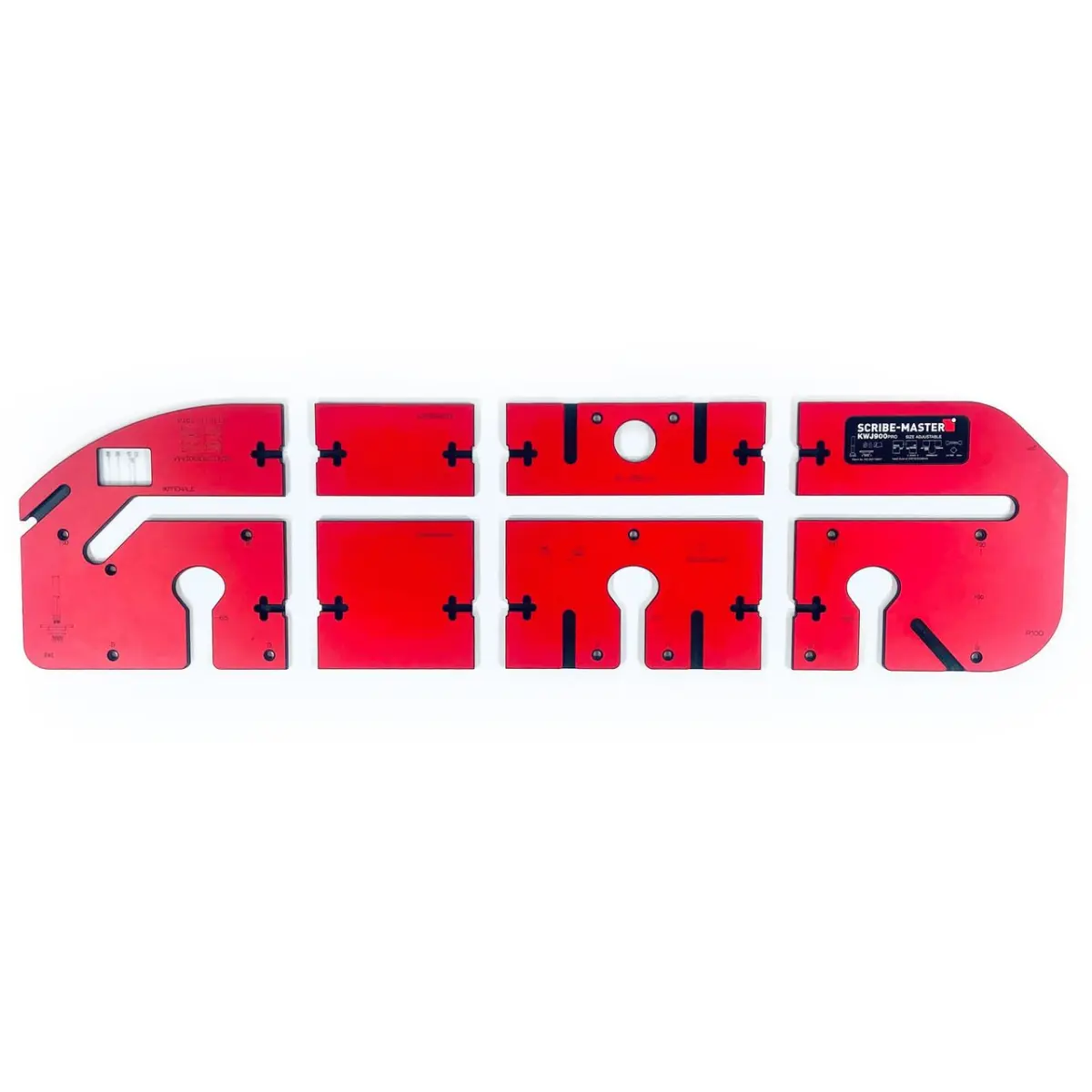

Scribe-Master KWJ900PRO Adjustable Kitchen Worktop Jig, 150-900mm
Precision kitchen worktop jig with Square Window Sight Line Tech – adjustable 150-900mm, 5 backsets & fast joint cutting.
The Scribe-Master KWJ900PRO is a professional-grade adjustable kitchen worktop jig, designed to revolutionise your worktop cutting process with its innovative Square Window Sight Line Technology. Offering an adjustable length from 150mm to 900mm, this jig ensures precise and effortless cutting for a variety of worktop materials.
Key Features
- Square Window Sight Line Technology – Simplifies cutting by allowing you to align your cut line visually with the jig’s window, eliminating guesswork and unnecessary measurements.
- Front-edge adjustments – Ensures accuracy, even with non-standard width worktops or irregular scribing.
- Easy Set Reference Window – Allows quick setup for any backset using a measured reference line.
- Five Backset Options (3mm, 5mm, 10mm, 24mm, 35mm) – Suitable for different materials and modern edge profiles.
- Compact & Portable – Breaks down to 35cm x 35cm x 6cm for easy storage and transport.
- Includes 2 Bonus Jigs – A 3/4” BSP/Door Hinge Jig and a Dog Hole Jig for added versatility.
- Single-Pass Joint Cutting – Reduces router strain and extends cutter lifespan, ideal for thin or narrow worktops.
- Fast & Efficient – Cuts a full male and female joint in just 15 minutes, including setup time.
Additional Features
- Clamp Recesses – Designed for below-the-surface clamping, ensuring unrestricted routing.
- Engraved Markings – Provides clear reference points for precision work.
- Compatible with Various Edge Profiles – Including square edge, small radius, post form radius, and bullnose.
Suitable for compact laminate, composite, solid wood, and chipboard laminate, the Scribe-Master KWJ900PRO is the ideal tool for professional and DIY kitchen installations.
- Kitchen worktop installation
- Cutting laminate worktops
- Solid wood worktop joints
- Composite & chipboard worktop fabrication
- Adjustable Length: 150-900mm
- Five Backsets: 3mm, 5mm, 10mm, 24mm, 35mm
- Length: 985mm
- Width: 335mm
- Thickness: 12mm
- End Cut: 45 degrees
- Corner Radii: 40mm, 100mm, 400mm
- Corner Mitre Joint: 45 degrees
- Bolt Recesses: 3
- Bolt Recess Centres: 175 + 175mm
- Bolt Recess Width: 14mm
- Guide Bush Required: 30mm (not included)
- Plunge Router Requirement: 1/2-inch (min. 1300W - not included)
- Cutter Requirement: 12.7mm x 50mm (not included)
- Clamps Required: Two (not included)
- Weight: 6kg
