SMD Detector Switch with Post, Bending Terminals, SPST-NC, 1mA, 5V DC
Compact SMD detector switch with post, SPST-NC, 1mA/5V. Ideal for consumer electronics, safety controls.

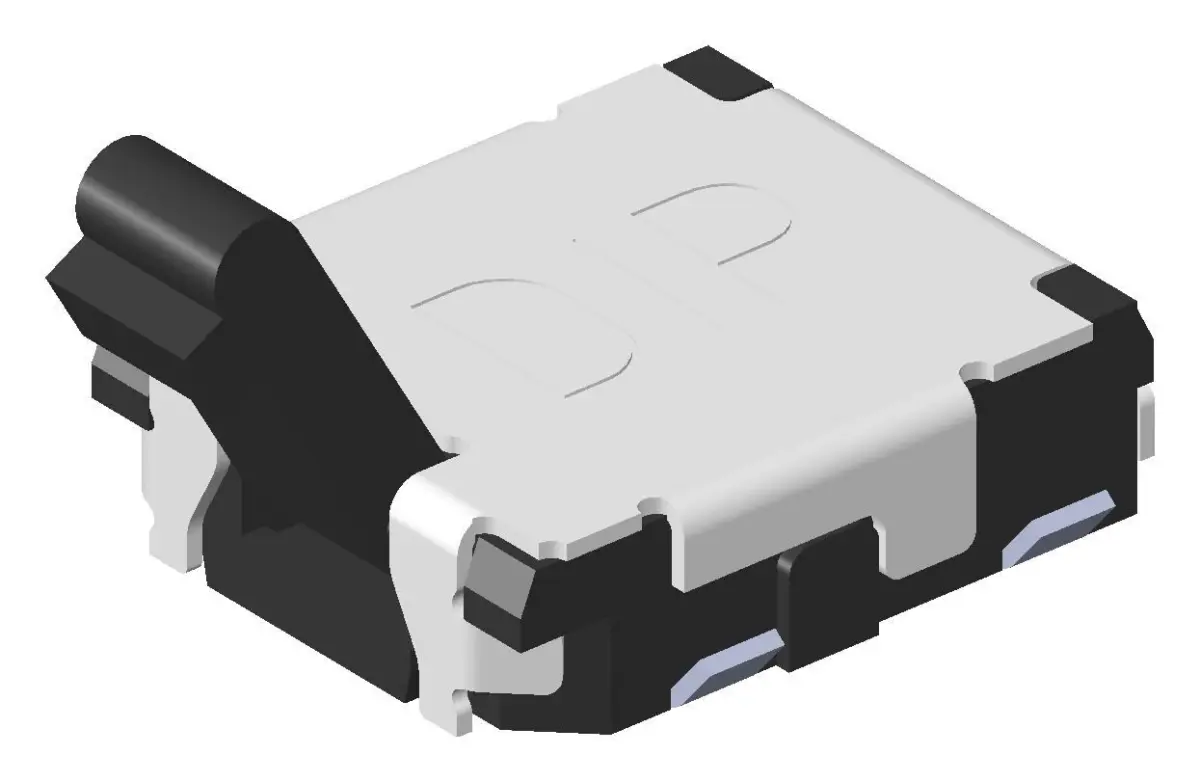

The MP000779 from Multicomp Pro is a surface-mount (SMD) detector switch featuring a post actuator and bending terminals. This compact switch is designed for reliable detection in a variety of electronic applications.
With a travel of 2.5mm and a light operating force of 35gf, it offers precise and responsive actuation. The switch uses a SPST-NC (Single Pole Single Throw, Normally Closed) contact configuration, ensuring a stable signal when not actuated. It is rated for a maximum contact current of 1mA and a nominal DC voltage of 5V, making it suitable for low-power signal circuits.
Typical applications include:
- Consumer electronics
- Safety control devices
- Heat energy regulators
The SMD design and bending terminals allow for efficient automated assembly and space-saving placement on PCBs. As part of the Multicomp Pro detector switch series, this component is built for dependable performance in demanding environments.
Specifications
- Actuator: Post
- Switch Terminals: SMD (Bending)
- Contact Configuration: SPST-NC
- Contact Current Max: 1mA
- Contact Voltage (DC): 5V
- Travel: 2.5mm
- Operating Force: 35gf
- Series: Multicomp Pro Detector Switch-779
- Weight: 0.041g
- Dimensions: Height 43mm, Width 33mm, Depth 15mm
This detector switch is an excellent choice for designers seeking a compact, reliable switching solution for modern electronic assemblies.
